SKU: RAE35-NPP-B-INA

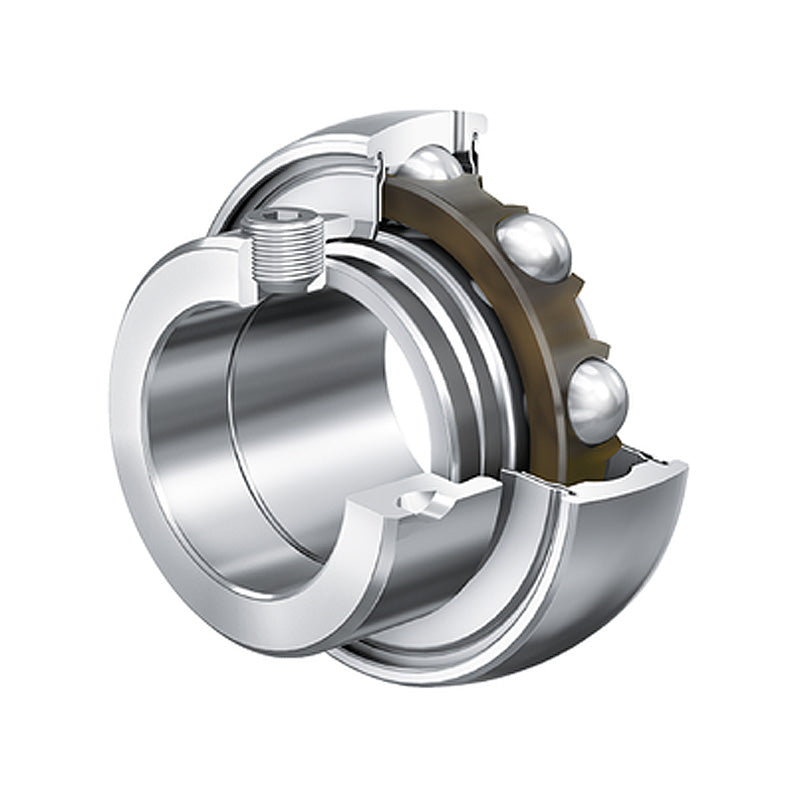

INA RAE35XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
INA RAE35XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
Regular price
$42.92
ex VAT
Regular price
Sale price
$42.92
ex VAT
In stock
Price Break
10+
$38.20
19+
$36.05
29+
$35.62
39+
$35.19
49+
$34.77
74+
$34.34
99+
$32.19
199+
$31.76
249+
$31.33
499+
$30.90
999+
$30.04
Description
Description
|
INA RAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.47 kg |
