SKU: RAE35-NPP-NR-INA

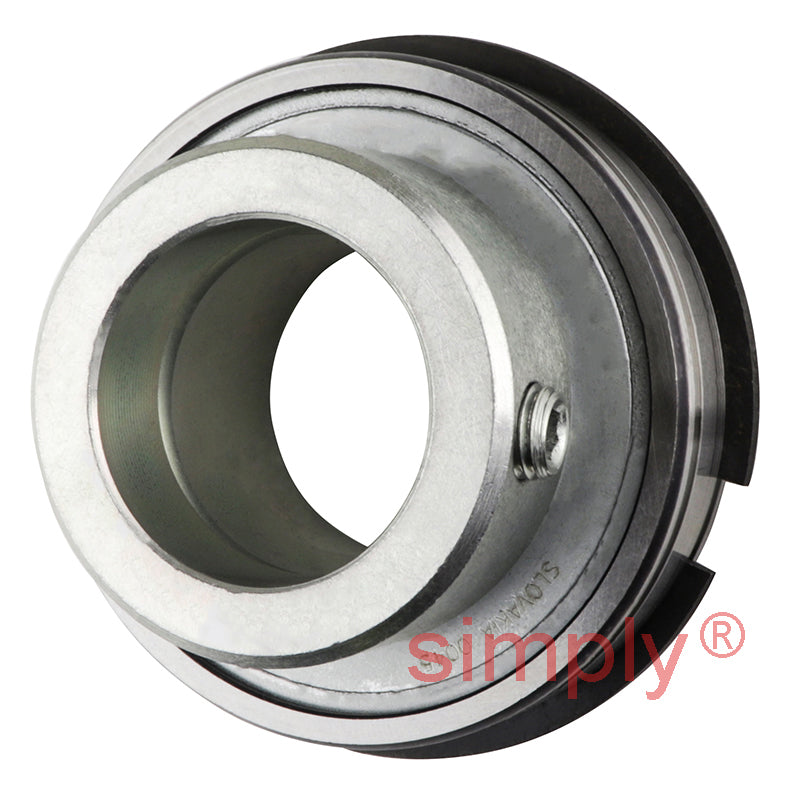

INA RAE35XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 35x72x39mm
INA RAE35XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 35x72x39mm
Regular price
$45.12
ex VAT
Regular price
Sale price
$45.12
ex VAT
In stock
Price Break
10+
$40.16
19+
$37.90
29+
$37.45
39+
$37.00
49+
$36.55
74+
$36.10
99+
$33.84
199+
$33.39
249+
$32.94
499+
$32.49
999+
$31.58
Description
Description
|
INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 39mm |
| A | 4.98mm |
| Tolerance | -0.3 |
| a | 1.7mm |
| B | 25.4mm |
| C | 19mm |
| D2 | 78.6mm |
| d2 | 44.6mm |
| d3 max | 51mm |
| S | 9.5mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.48 kg |
