SKU: RAX412-MB

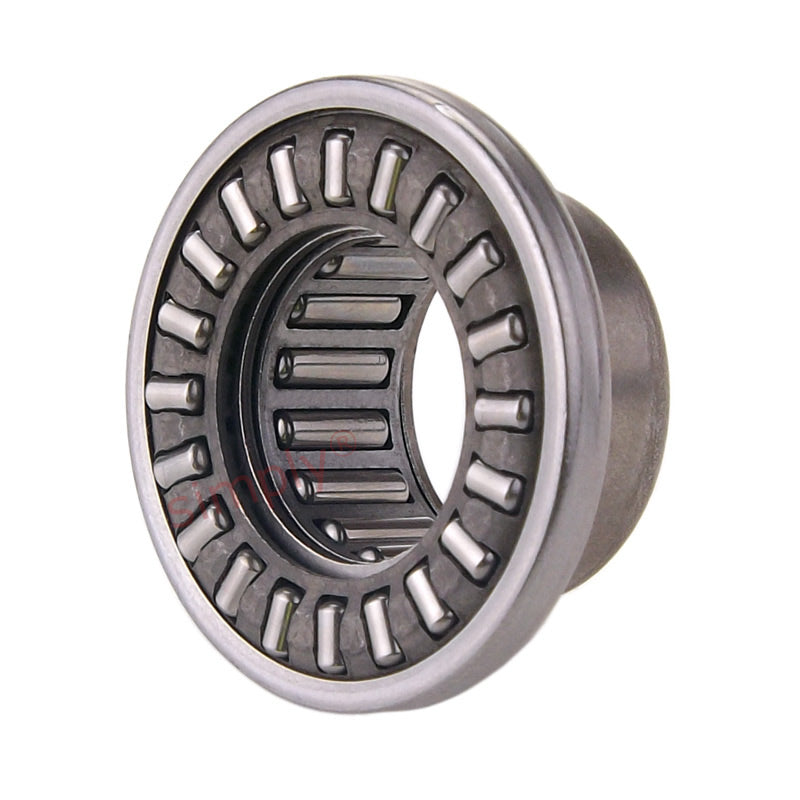

Major Brand RAX 412 Needle Combined Bearing with Needle Thrust Cage 12x21x19mm Allow 2-3 Days
Major Brand RAX 412 Needle Combined Bearing with Needle Thrust Cage 12x21x19mm Allow 2-3 Days
Regular price
$138.96
ex VAT
Regular price
Sale price
$138.96
ex VAT
In stock
Price Break
10+
$123.67
19+
$116.73
29+
$115.34
39+
$113.95
49+
$112.56
74+
$111.17
99+
$104.22
199+
$102.83
249+
$101.44
499+
$100.05
999+
$97.27
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Width:
- 21mm
Technical
Technical
| Fw | 12mm |
|---|---|
| C | 19mm |
| D | 21mm |
| Da | 26mm |
| Eb | 15mm |
| Ea | 22.6mm |
| C1 | 5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.78 kN |
| Radial static load | 9.03 kN |
| Axial dynamic load | 7.1 kN |
| Axial static load | 18.5 kN |
| Speed rating | 13000 rpm |
| Inner ring | JR 9x12x16 kN |
| Weight | 0.032 kg |
