SKU: RAX420-MB

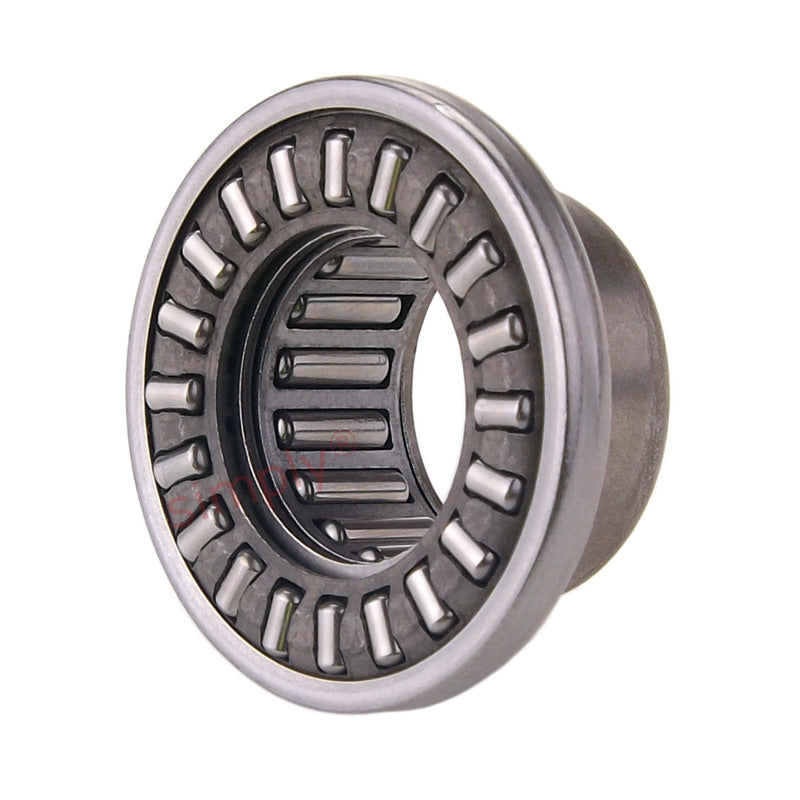

Major Brand RAX 420 Needle Combined Bearing With Needle Thrust Cage 20x30x24mm
Major Brand RAX 420 Needle Combined Bearing With Needle Thrust Cage 20x30x24mm
Regular price
$157.91
ex VAT
Regular price
Sale price
$157.91
ex VAT
In stock
Price Break
10+
$140.54
19+
$132.64
29+
$131.07
39+
$129.49
49+
$127.91
74+
$126.33
99+
$118.43
199+
$116.85
249+
$115.27
499+
$113.70
999+
$110.54
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 24mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| C | 24mm |
| D | 30mm |
| Da | 35mm |
| Eb | 22mm |
| Ea | 31.6mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Speed rating | 9000 rpm |
| Inner ring | JR 17x20x20 kN |
| Weight | 0.066 kg |
