SKU: RAXN530-MB

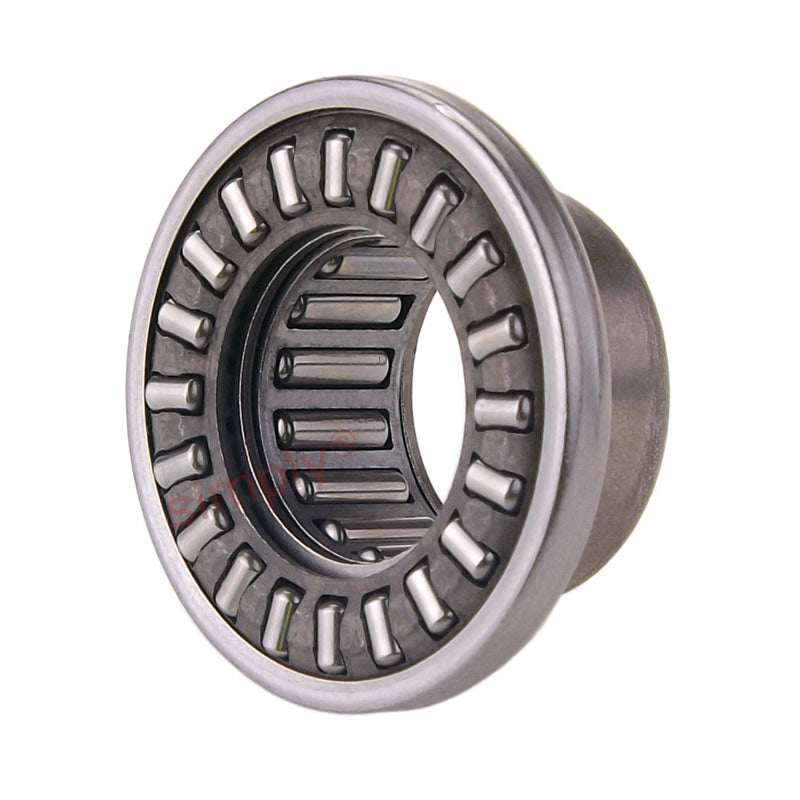

Major Brand RAXN 530 Needle Combined Bearing with Needle Thrust Cage 30x42x26mm Allow 2-3 Days
Major Brand RAXN 530 Needle Combined Bearing with Needle Thrust Cage 30x42x26mm Allow 2-3 Days
Regular price
$554.53
ex VAT
Regular price
Sale price
$554.53
ex VAT
In stock
Price Break
10+
$493.53
19+
$465.81
29+
$460.26
39+
$454.71
49+
$449.17
74+
$443.62
99+
$415.90
199+
$410.35
249+
$404.81
499+
$399.26
999+
$388.17
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 26mm
- Width:
- 42mm
Technical
Technical
| Fw | 30mm |
|---|---|
| C | 26mm |
| D | 42mm |
| Da | 47mm |
| Eb | 32.7mm |
| Ea | 42.3mm |
| C1 | 8mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 26.5 kN |
| Axial static load | 77 kN |
| Speed rating | 6500 rpm |
| Inner ring | JR 25x30x20 kN |
| Weight | 0.118 kg |
