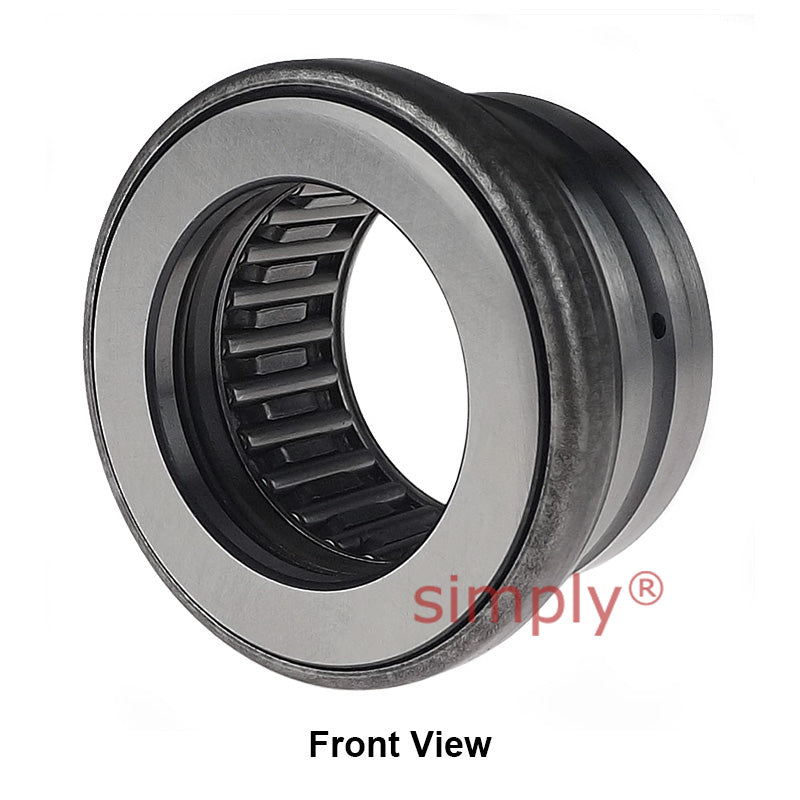

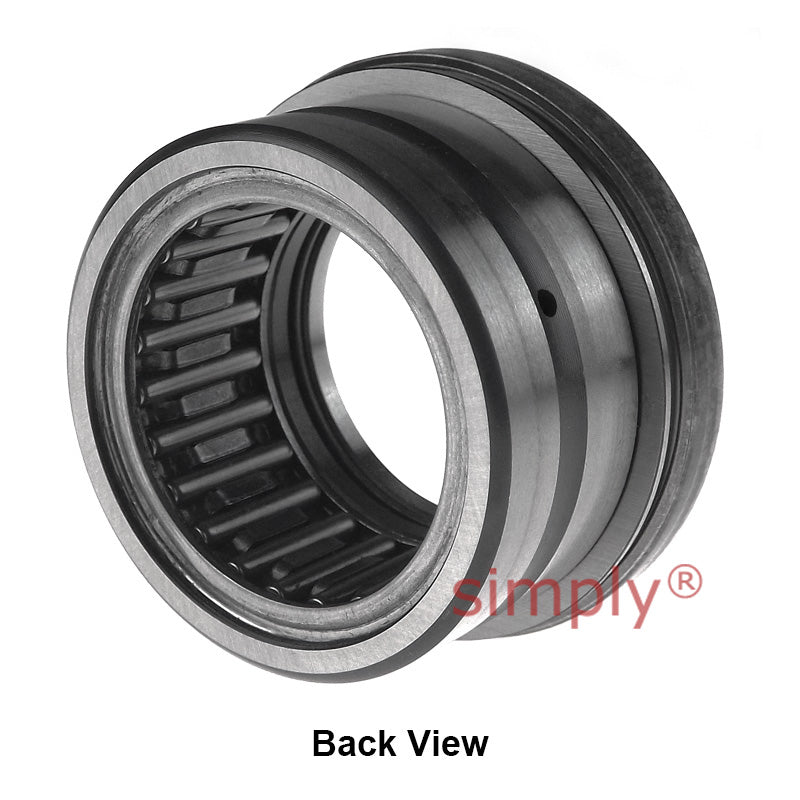

Nadella RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Nadella RAXZ 530 Combined Bearing with Incorporated Thrust Plate 30x42x29mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 29mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 29mm |
| da | 30mm |
| Da | 48mm |
| C1 | 11mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 26.5 kN |
| Axial static load | 77 kN |
| Speed rating | 6.5 rpm |
| Weight | 0.147 kg |
