SKU: SAFD204-12

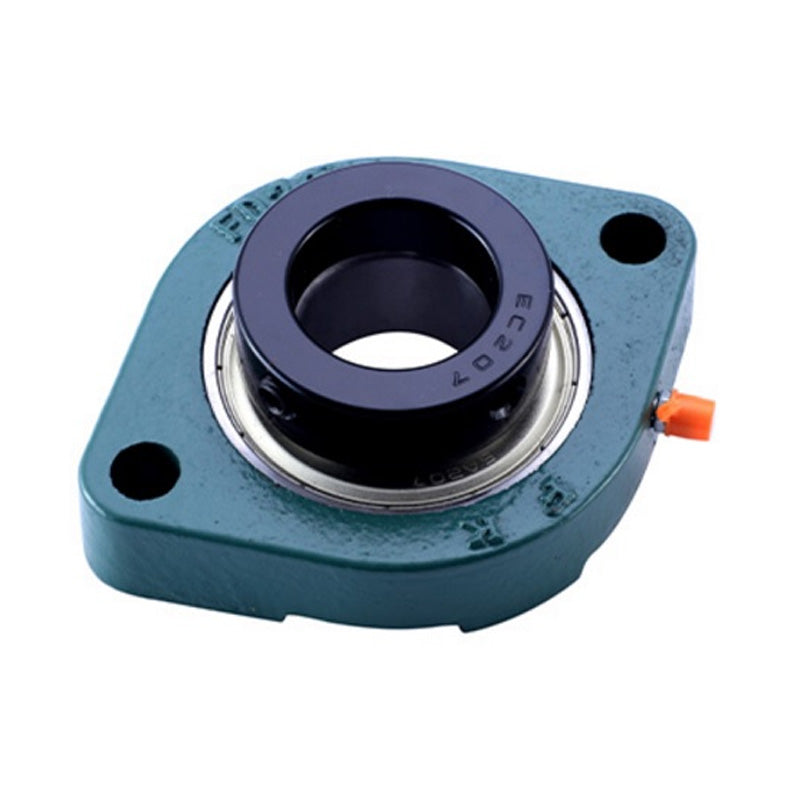

SAFD204-12 Imperial Two Bolt Cast Iron Oval Housing and 3/4 inch Bore and Eccentric Collar
SAFD204-12 Imperial Two Bolt Cast Iron Oval Housing and 3/4 inch Bore and Eccentric Collar
Regular price
$30.02
ex VAT
Regular price
Sale price
$30.02
ex VAT
Low stock
Price Break
10+
$26.72
19+
$25.22
29+
$24.92
39+
$24.62
49+
$24.32
74+
$24.02
99+
$22.52
199+
$22.21
249+
$21.91
499+
$21.61
999+
$21.01
Couldn't load pickup availability
Description
Description
SAFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SAFD
- Bolt Hole Centres:
- 71.04mm = 2.797 (2-51/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 3-35/64 inch |
| e | 2-51/64 inch |
| b | 2-41/64 inch |
| i | 3/8 inch |
| s | 25/64 inch |
| l | 43/64 inch |
| z | 1-5/64 inch |
| B1 | 0.9843 inch |
| n | 0.2756 inch |
| Bolt size | 5/16 inch |
| Bearing no | SA204-12 |
| Housing no | FD204 |
| Weight | 0.4 kg |
