SKU: SALKB8F-SKF

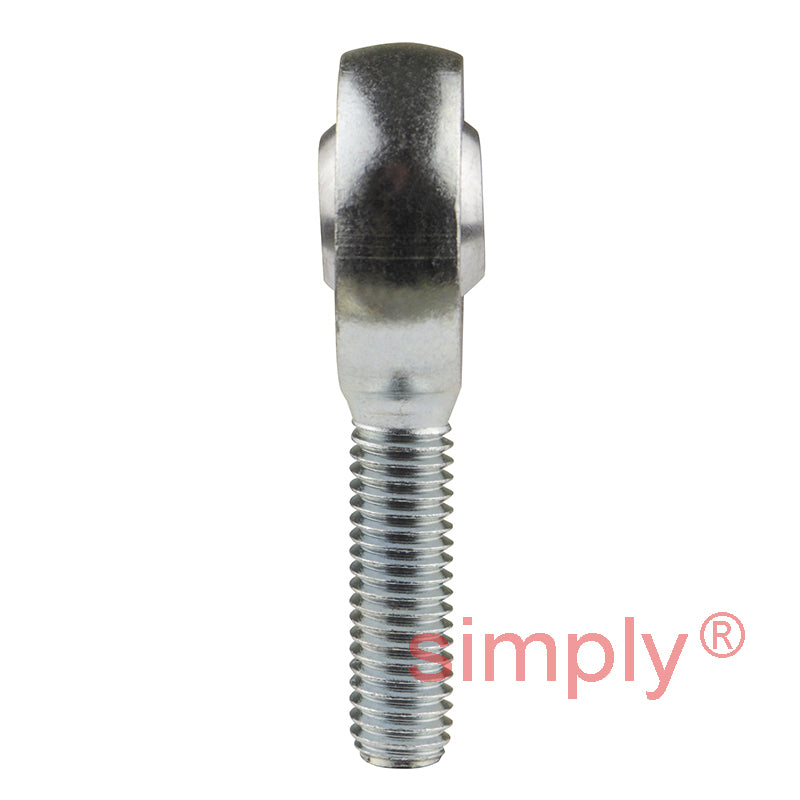

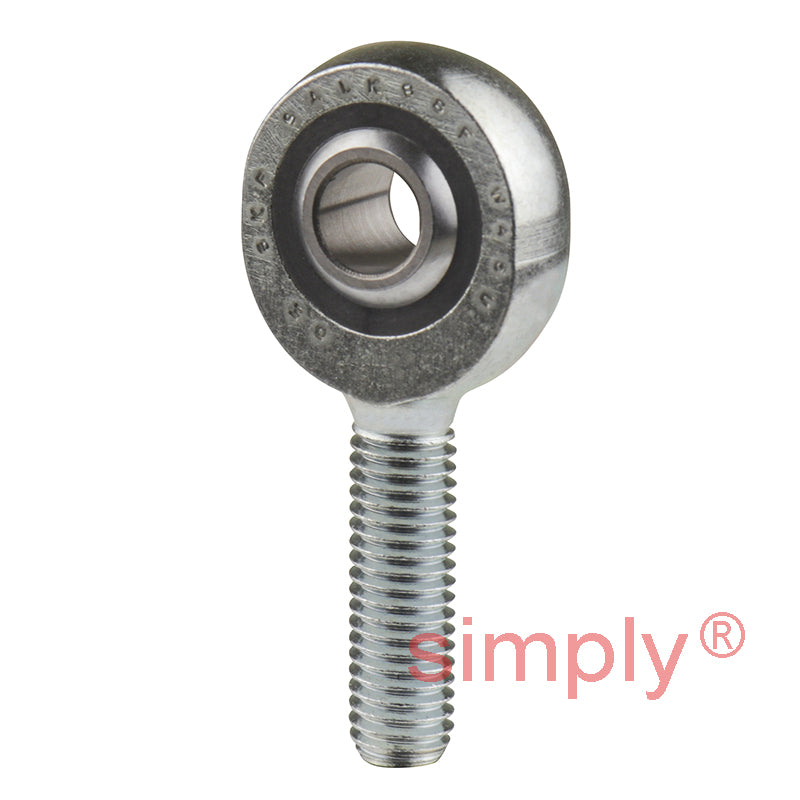

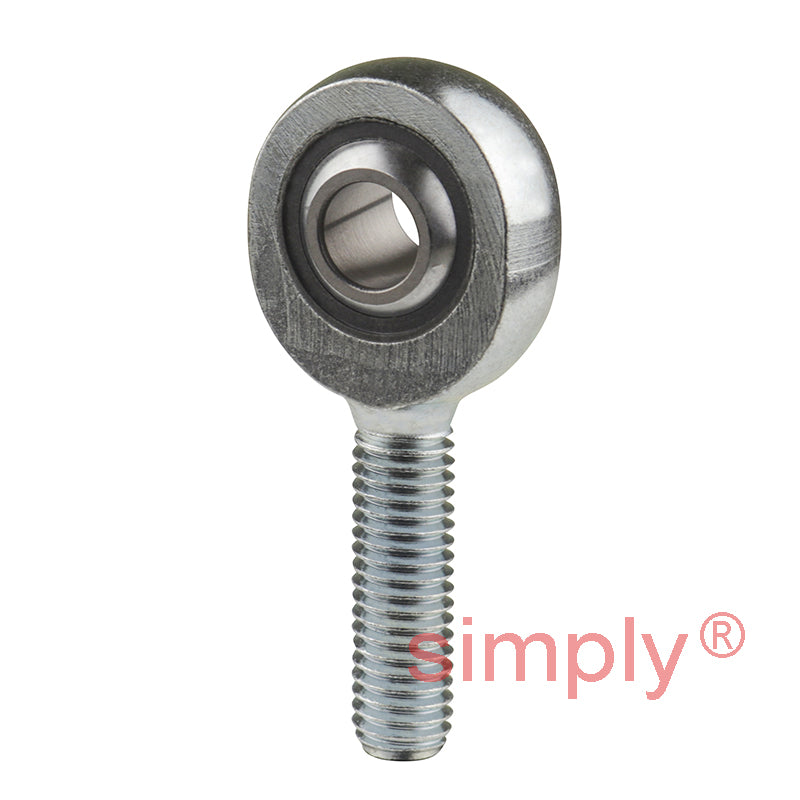

SKF SALKB8F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
SKF SALKB8F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M8 Thread
Regular price
$45.32
ex VAT
Regular price
Sale price
$45.32
ex VAT
Equivalent to: MSL-M08
In stock
Price Break
10+
$40.33
19+
$38.07
29+
$37.62
39+
$37.16
49+
$36.71
74+
$36.26
99+
$33.99
199+
$33.54
249+
$33.08
499+
$32.63
999+
$31.72
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M08
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M8
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 12mm |
| C1 max | 9mm |
| h | 42mm |
| a | 14deg |
| Dynamic load C | 7.1 kN |
| Static load Co | 10 kN |
| Weight | 0.035 kg |
| dk | 15.8mm |
| l1 min | 25mm |
| l2 max | 56mm |
| r1 min | 0.3mm |
