SKU: SB.202

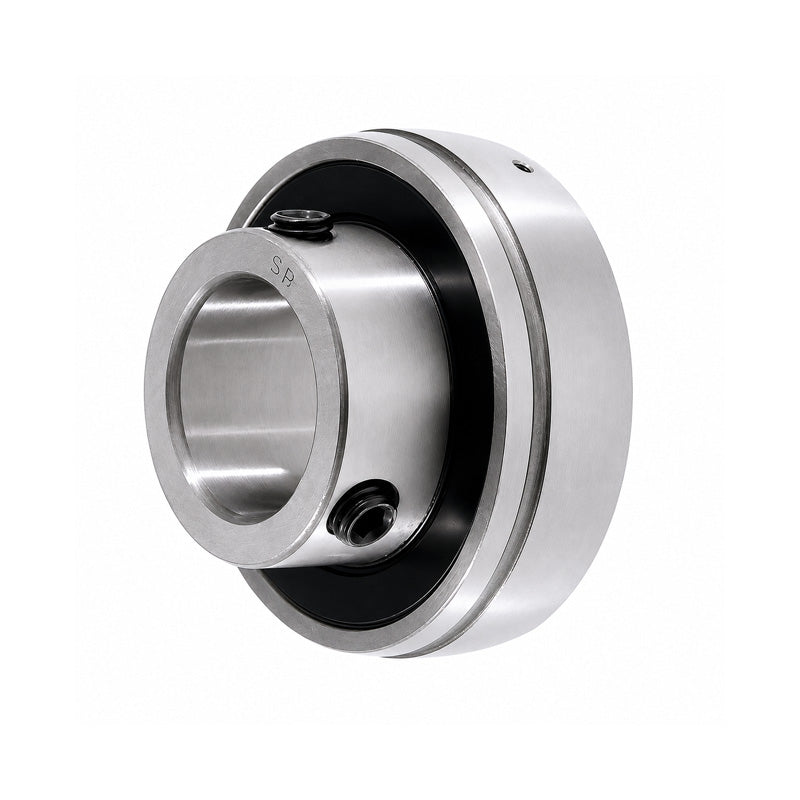

SB202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
SB202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
Regular price
$9.05
ex VAT
Regular price
Sale price
$9.05
ex VAT
In stock
Price Break
10+
$8.05
19+
$7.60
29+
$7.51
39+
$7.42
49+
$7.33
74+
$7.24
99+
$6.79
199+
$6.70
249+
$6.61
499+
$6.52
999+
$6.34
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- SB
Technical
Technical
| d | 15mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
