SKU: SB.204-12G

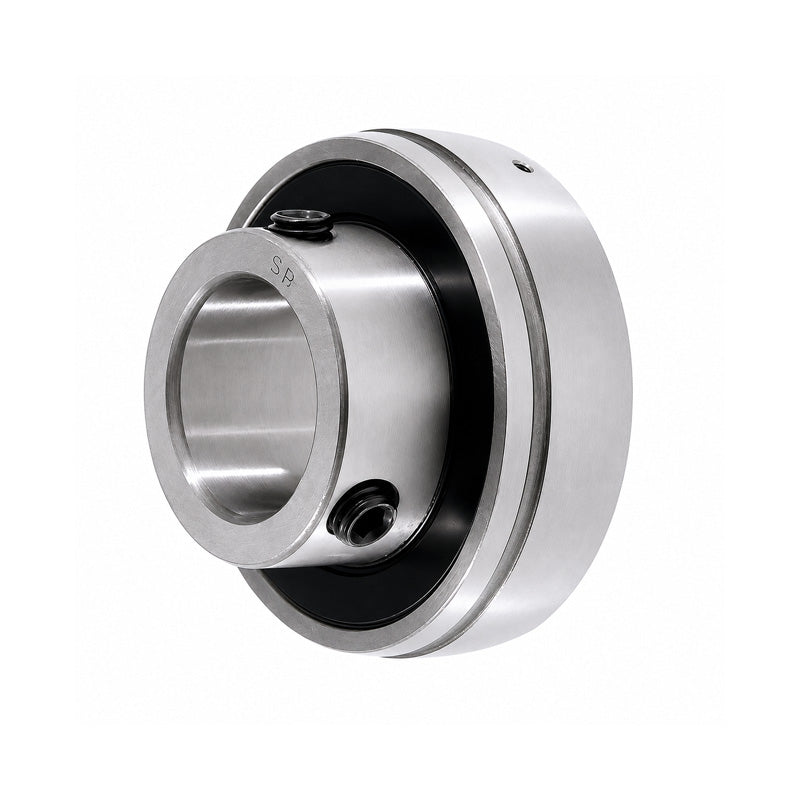

SB204-12G Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
SB204-12G Imperial Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
$8.04
ex VAT
Regular price
Sale price
$8.04
ex VAT
In stock
Price Break
10+
$7.16
19+
$6.75
29+
$6.67
39+
$6.59
49+
$6.51
74+
$6.43
99+
$6.03
199+
$5.95
249+
$5.87
499+
$5.79
999+
$5.63
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SB
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
