SKU: SB.207-22

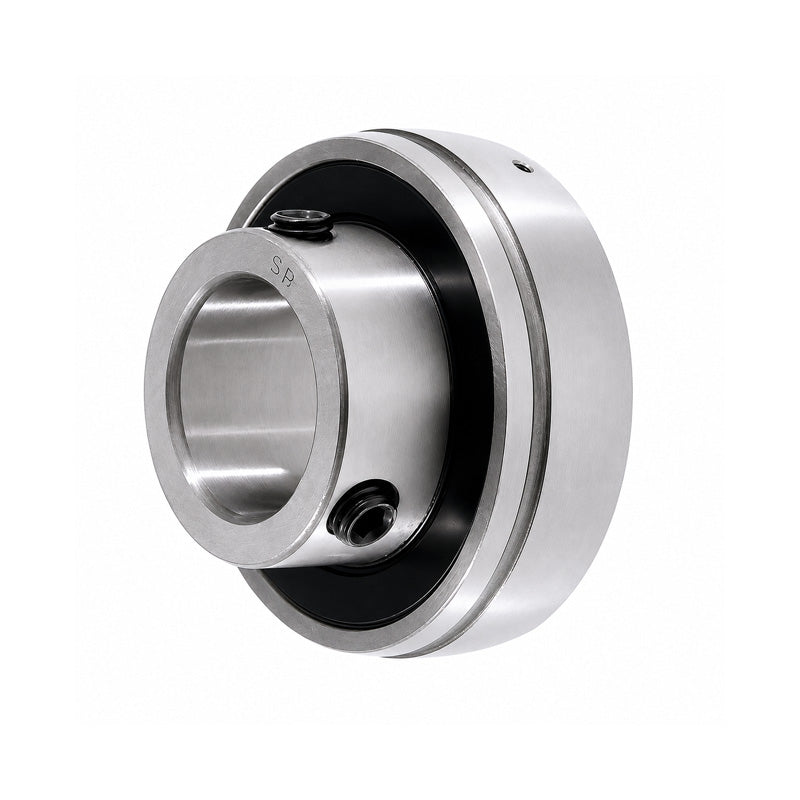

SB207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
SB207-22 Imperial Bearing Insert with 1-3/8 inch Bore 72mm Outside Dia
Regular price
$10.73
ex VAT
Regular price
Sale price
$10.73
ex VAT
In stock
Price Break
10+
$9.55
19+
$9.01
29+
$8.91
39+
$8.80
49+
$8.69
74+
$8.58
99+
$8.05
199+
$7.94
249+
$7.83
499+
$7.73
999+
$7.51
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
