SKU: SBFD201

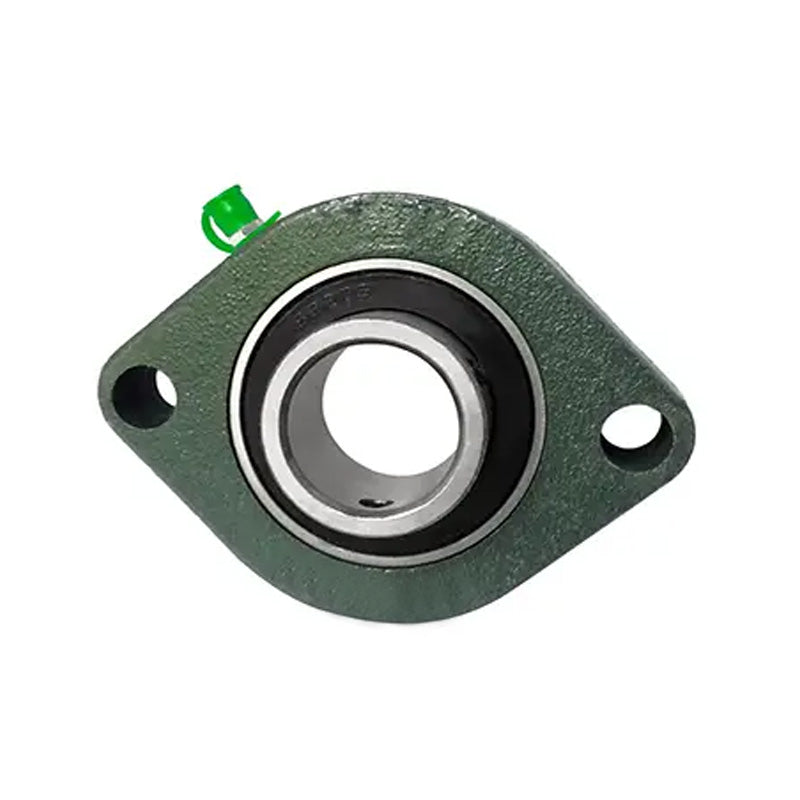

SBFD201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
SBFD201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore
Regular price
$14.80
ex VAT
Regular price
Sale price
$14.80
ex VAT
In stock
Price Break
10+
$13.17
19+
$12.43
29+
$12.28
39+
$12.14
49+
$11.99
74+
$11.84
99+
$11.10
199+
$10.95
249+
$10.80
499+
$10.66
999+
$10.36
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- SBFD
- Bolt Hole Centres:
- 63mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 81mm |
| e | 63mm |
| b | 59mm |
| i | 8.5mm |
| s | 7mm |
| l | 15mm |
| z | 24mm |
| B1 | 22mm |
| n | 6mm |
| Bolt size | M6 |
| Bearing no | SB201 |
| Housing no | FD203 |
| Weight | 0.3 kg |
