SKU: SBFD204-12

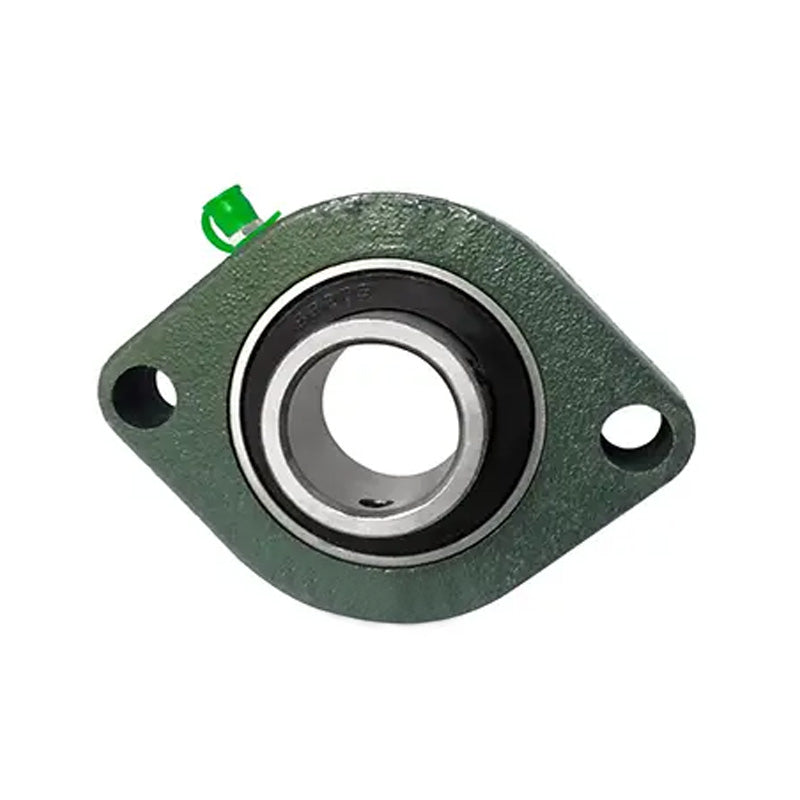

SBFD204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
SBFD204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore
Regular price
$14.95
ex VAT
Regular price
Sale price
$14.95
ex VAT
In stock
Price Break
10+
$13.31
19+
$12.56
29+
$12.41
39+
$12.26
49+
$12.11
74+
$11.96
99+
$11.21
199+
$11.06
249+
$10.91
499+
$10.76
999+
$10.47
Description
Description
SBFD200 Series Light Duty 2 Bolt Oval Housings: These light-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SBFD
- Bolt Hole Centres:
- 71.04mm = 2.797 (2-51/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 3-35/64 inch |
| e | 2-51/64 inch |
| b | 2-41/64 inch |
| i | 3/8 inch |
| s | 25/64 inch |
| l | 43/64 inch |
| z | 1-5/64 inch |
| B1 | 0.9843 inch |
| n | 0.2756 inch |
| Bolt size | 5/16 inch |
| Bearing no | SB204-12 |
| Housing no | FD204 |
| Weight | 0.4 kg |
