SKU: SBLF.206-20

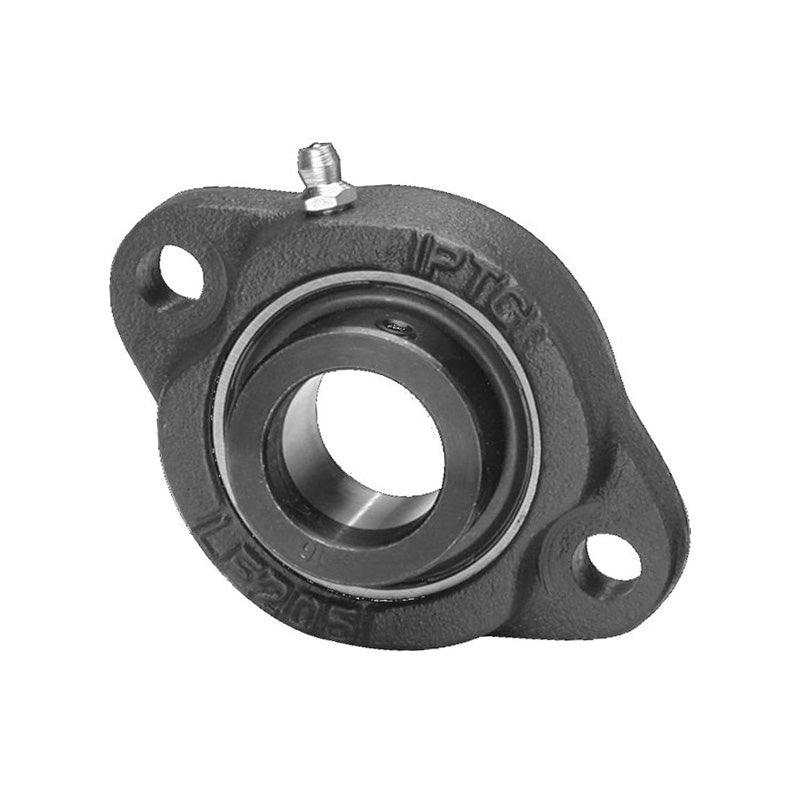

SBLF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
SBLF206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Bore Grub Screw Insert
Regular price
$18.90
ex VAT
Regular price
Sale price
$18.90
ex VAT
In stock
Price Break
10+
$16.82
19+
$15.88
29+
$15.69
39+
$15.50
49+
$15.31
74+
$15.12
99+
$14.18
199+
$13.99
249+
$13.80
499+
$13.61
999+
$13.23
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 90.5mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 113mm |
| e | 90.5mm |
| b | 76mm |
| i | 12mm |
| s | 12mm |
| g | 12mm |
| l | 22.5mm |
| Bolt | M10 |
| z | 34mm |
| n | 8mm |
| Weight | 0.7 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
