SKU: SBPFL207-22.OVL

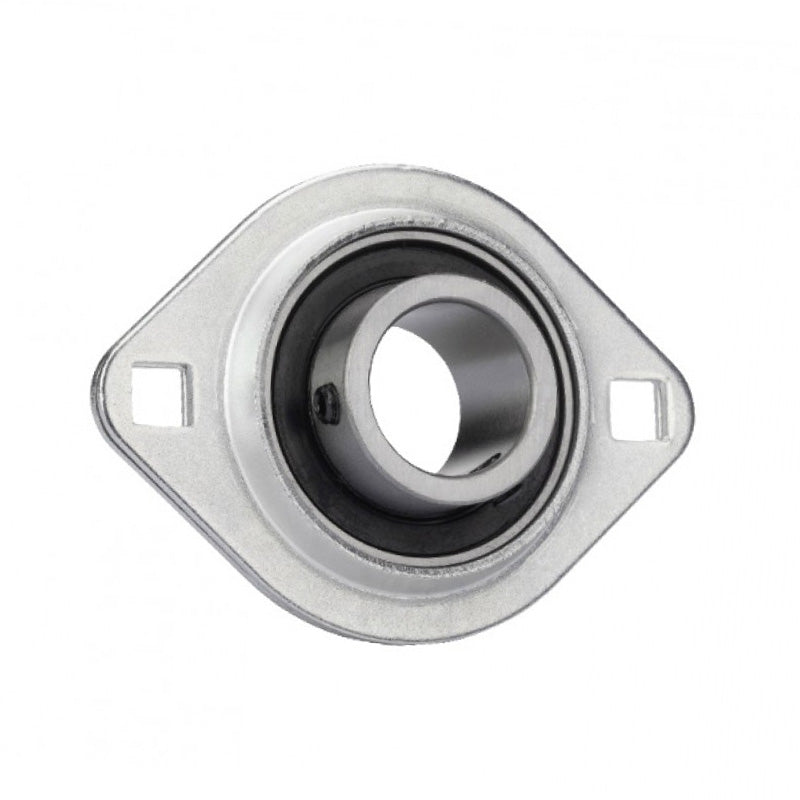

SBPFL207-22 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/8 inch insert
SBPFL207-22 Oval 2 Bolt Pressed Steel Bearing Housing with 1-3/8 inch insert
Regular price
$15.13
ex VAT
Regular price
Sale price
$15.13
ex VAT
Equivalent to: SLFL1-3/8
In stock
Price Break
10+
$13.47
19+
$12.71
29+
$12.56
39+
$12.41
49+
$12.26
74+
$12.10
99+
$11.35
199+
$11.20
249+
$11.04
499+
$10.89
999+
$10.59
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
Equivalent: SLFL1-3/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SBPFL
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 122mm |
| e | 100mm |
| b | 94mm |
| m | 20mm |
| s | 11mm |
| t | 5.2mm |
| f | 81mm |
| B | 32mm |
| n | 8.5mm |
| Bolt | 3/8 inch |
| Weight | 0.50 kg |
| Dynamic load | 2010 N |
| Static load | 1390 N |
