SKU: SCF20ES-SKF

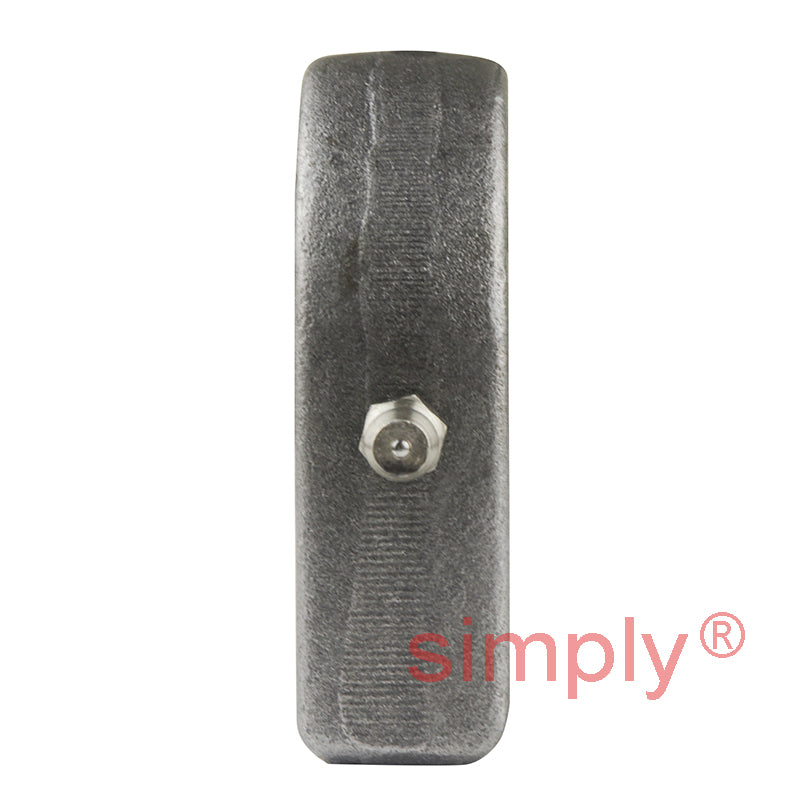

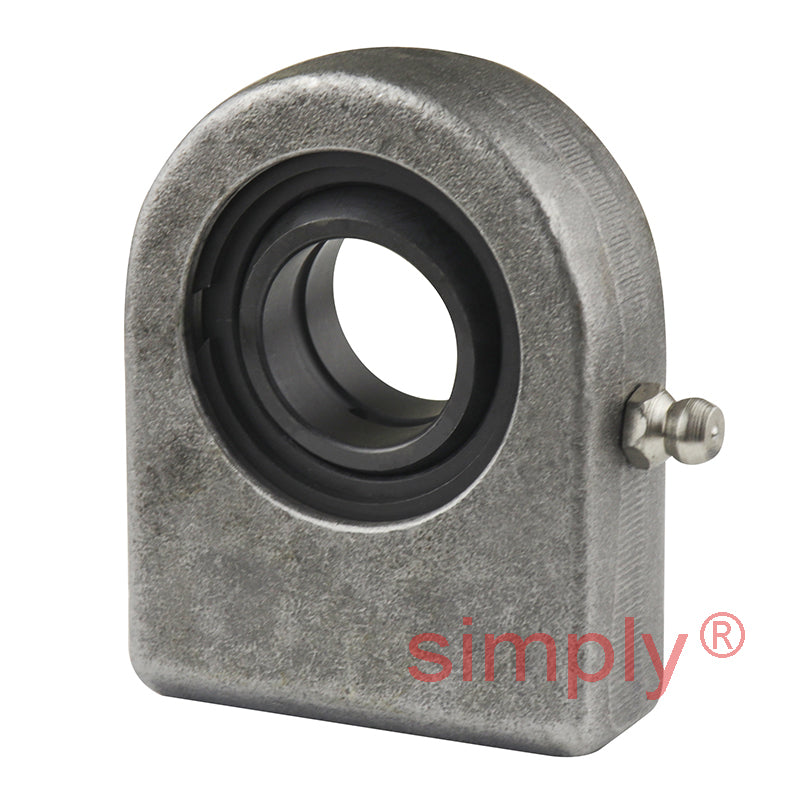

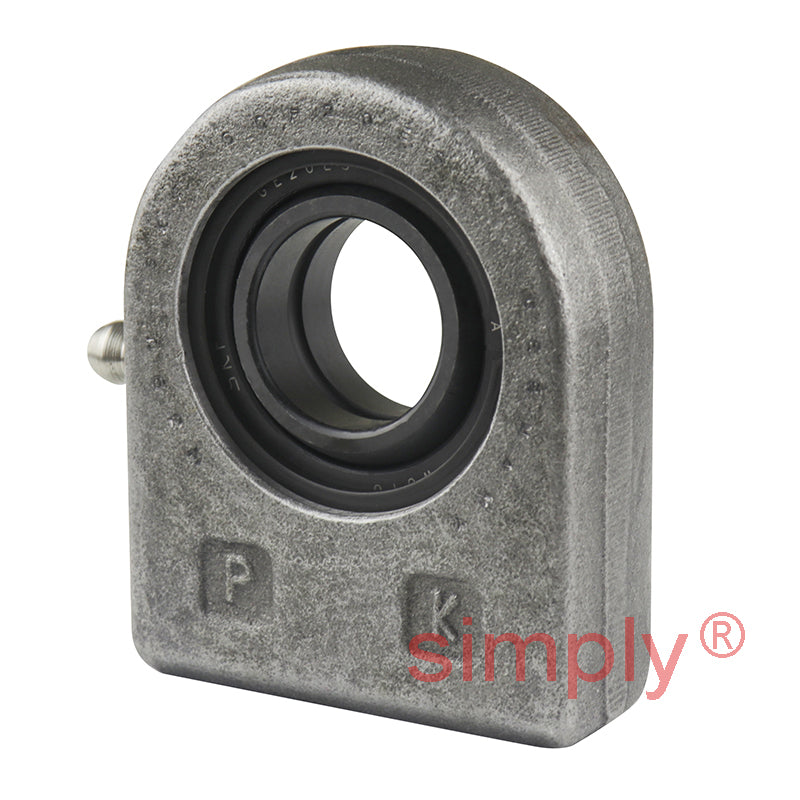

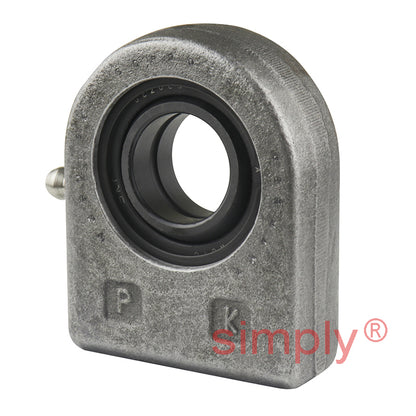

SKF SCF20ES Steel / Steel Rod End With Rectangular Section Welding Shank
SKF SCF20ES Steel / Steel Rod End With Rectangular Section Welding Shank
Regular price
$89.40
ex VAT
Regular price
Sale price
$89.40
ex VAT
Equivalent to: SN20 GF20DO SF20ES
In stock
Price Break
10+
$79.57
19+
$75.10
29+
$74.20
39+
$73.31
49+
$72.41
74+
$71.52
99+
$67.05
199+
$66.16
249+
$65.26
499+
$64.37
999+
$62.58
Description
Description
|
SKF SCF..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head, this will serve to extend it's life cycle. Dependent on installation design the lubricant may also be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized rod end bearings. Manufactured from S355 J2G3 (St 52-3N) Steel and will operate within -50deg C to +200 deg C. This series is designed for welding to piston rods and cylinder bases and has a rectangular welding base. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, body can be welded |
Equivalent: SN20 GF20DO SF20ES
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| d2 max | 51.5mm |
| B | 16mm |
| C1 max | 20mm |
| h2 js13 | 38mm |
| a | 9deg |
| Dynamic load C | 30 kN |
| Static load Co | 63 kN |
| Weight | 0.35 kg |
| dk | 29mm |
| l6 max | 64mm |
| r1 min | 0.3mm |
