SKU: SF1.1/2EC-RHP

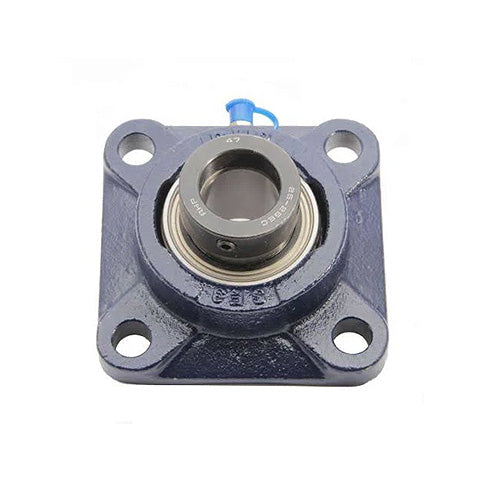

RHP SF1-1/2EC Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Eccentric Collar Flat Back Insert
RHP SF1-1/2EC Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Eccentric Collar Flat Back Insert
Regular price
$92.35
ex VAT
Regular price
Sale price
$92.35
ex VAT
In stock
Price Break
10+
$82.19
19+
$77.57
29+
$76.65
39+
$75.73
49+
$74.80
74+
$73.88
99+
$69.26
199+
$68.34
249+
$67.42
499+
$66.49
999+
$64.65
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 101.5mm = 3.996 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.126 inch |
| H | 4000 inch |
| J | 3.996 inch |
| G | 0.5 inch |
| A | 1.374 |
| A2 | 2.229 inch |
| A4 | 0.5 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.374 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
