SKU: SF1.1/4R-RHP

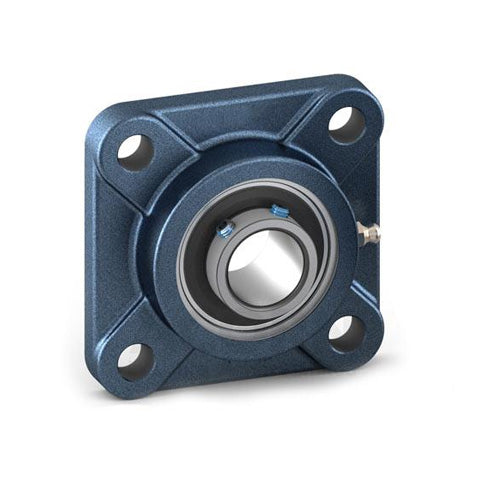

RHP SF1-1/4R Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Full Width Insert
RHP SF1-1/4R Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Full Width Insert
Regular price
$64.82
ex VAT
Regular price
Sale price
$64.82
ex VAT
In stock
Price Break
10+
$57.69
19+
$54.45
29+
$53.80
39+
$53.15
49+
$52.50
74+
$51.86
99+
$48.62
199+
$47.97
249+
$47.32
499+
$46.67
999+
$45.37
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 82.5mm = 3.248 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 4.252 inch |
| H | 3.252 inch |
| J | 3.248 inch |
| G | 0.4375 inch |
| A | 1.173 |
| A1 | 1.662 inch |
| A4 | 0.5 inch |
| B | 1.5 |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static Load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
