SKU: SF1.3/8-RHP

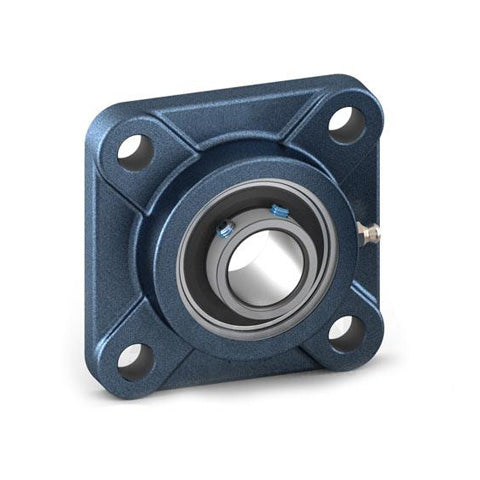

RHP SF1-3/8 Four Bolt Square Cast Iron Flange Housing and 1-3/8 inch Bore Grub Screw Full Width Insert
RHP SF1-3/8 Four Bolt Square Cast Iron Flange Housing and 1-3/8 inch Bore Grub Screw Full Width Insert
Regular price
$75.43
ex VAT
Regular price
Sale price
$75.43
ex VAT
In stock
Price Break
10+
$67.13
19+
$63.36
29+
$62.61
39+
$61.85
49+
$61.10
74+
$60.34
99+
$56.57
199+
$55.82
249+
$55.06
499+
$54.31
999+
$52.80
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 91.999mm = 3.622 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 4.626 inch |
| H | 3.752 inch |
| J | 3.622 inch |
| G | 0.5 inch |
| A | 1.236 |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B | 1.688 |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static Load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
