SKU: SF1.5/8-RHP

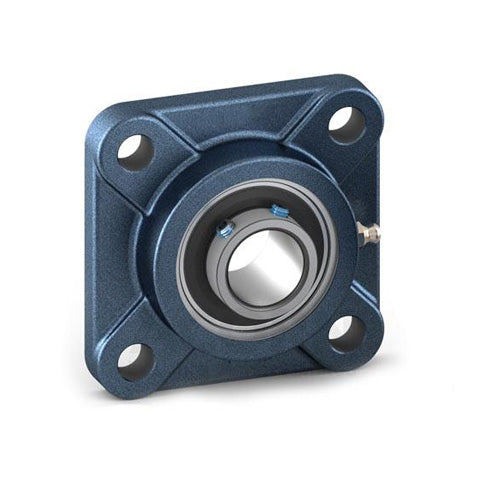

RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
RHP SF1-5/8 Four Bolt Square Cast Iron Flange Housing and 1-5/8 inch Bore Grub Screw Full Width Insert
Regular price
$98.19
ex VAT
Regular price
Sale price
$98.19
ex VAT
In stock
Price Break
10+
$87.39
19+
$82.48
29+
$81.50
39+
$80.52
49+
$79.53
74+
$78.55
99+
$73.64
199+
$72.66
249+
$71.68
499+
$70.70
999+
$68.73
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 105.004mm = 4.134 inch
Technical
Technical
| Bore | 1-5/8 inch |
|---|---|
| L | 5.374 inch |
| H | 4.374 inch |
| J | 4.134 inch |
| G | 0.625 inch |
| A | 1.39 |
| A1 | 2.133 inch |
| A4 | 0.563 inch |
| B | 1.938 |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-5/8G+insonly">1045-1-5/8G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
