SKU: SF15/16EC-RHP

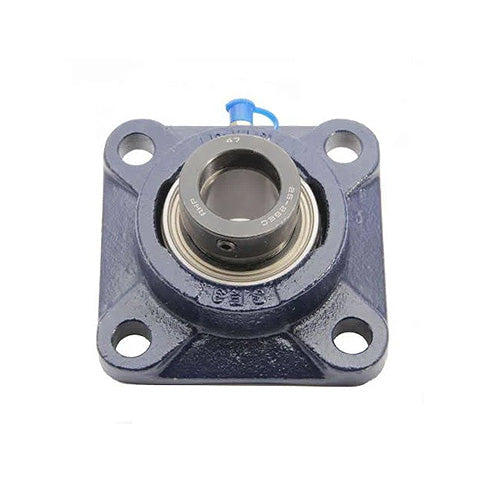

RHP SF15/16EC Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Eccentric Collar Flat Back Insert
RHP SF15/16EC Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Eccentric Collar Flat Back Insert
Regular price
$43.70
ex VAT
Regular price
Sale price
$43.70
ex VAT
In stock
Price Break
10+
$38.89
19+
$36.71
29+
$36.27
39+
$35.83
49+
$35.40
74+
$34.96
99+
$32.78
199+
$32.34
249+
$31.90
499+
$31.46
999+
$30.59
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 70.002mm = 2.756 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 3.752 inch |
| H | 2.677 inch |
| J | 2.756 inch |
| G | 0.4375 inch |
| A | 1.126 |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static Load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-15/16ECG+insonly">1225-15/16ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
