SKU: SF2.1/4-RHP

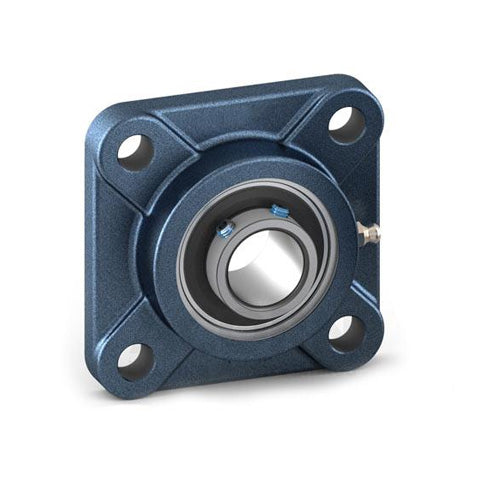

RHP SF2-1/4 Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Grub Screw Full Width Insert
RHP SF2-1/4 Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Grub Screw Full Width Insert
Regular price
$179.19
ex VAT
Regular price
Sale price
$179.19
ex VAT
In stock
Price Break
10+
$159.48
19+
$150.52
29+
$148.73
39+
$146.94
49+
$145.14
74+
$143.35
99+
$134.39
199+
$132.60
249+
$130.81
499+
$129.02
999+
$125.43
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 6.87 inch |
| H | 5.437 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static Load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
