SKU: SF2.1/4DEC-RHP

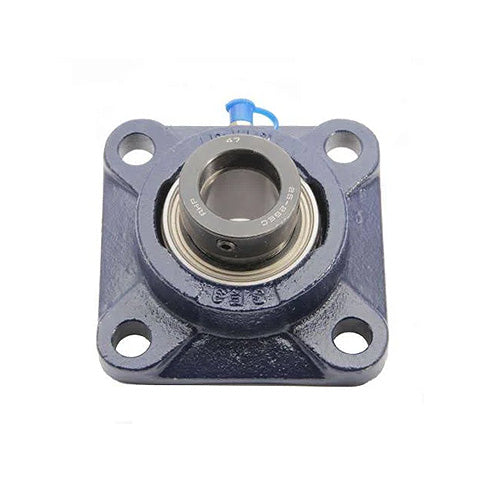

RHP SF2-1/4DEC Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Eccentric Collar Full Width Insert
RHP SF2-1/4DEC Four Bolt Square Cast Iron Flange Housing and 2-1/4 inch Bore Eccentric Collar Full Width Insert
Regular price
$226.86
ex VAT
Regular price
Sale price
$226.86
ex VAT
In stock
Price Break
10+
$201.91
19+
$190.56
29+
$188.29
39+
$186.03
49+
$183.76
74+
$181.49
99+
$170.15
199+
$167.88
249+
$165.61
499+
$163.34
999+
$158.80
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 6.87 inch |
| H | 5.437 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A3 | 3.18 inch |
| A4 | 0.689 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static Load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4DECG+insonly">1060-2-1/4DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
