SKU: SF2R-RHP

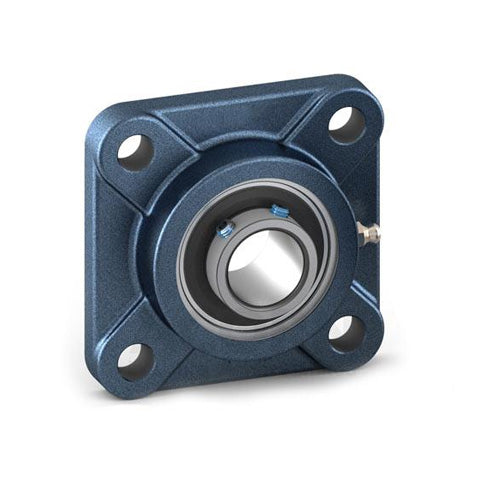

RHP SF2R Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
RHP SF2R Four Bolt Square Cast Iron Flange Housing and 2 inch Bore Grub Screw Full Width Insert
Regular price
$112.59
ex VAT
Regular price
Sale price
$112.59
ex VAT
In stock
Price Break
10+
$100.21
19+
$94.58
29+
$93.45
39+
$92.32
49+
$91.20
74+
$90.07
99+
$84.44
199+
$83.32
249+
$82.19
499+
$81.06
999+
$78.81
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SF
- Bolt Hole Centres:
- 110.998mm = 4.37 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5.626 inch |
| H | 4.563 inch |
| J | 4.37 inch |
| G | 0.625 inch |
| A | 1.563 |
| A1 | 2.383 inch |
| A4 | 0.563 inch |
| B | 2.031 |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static Load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
