SKU: SF3/4DEC-RHP

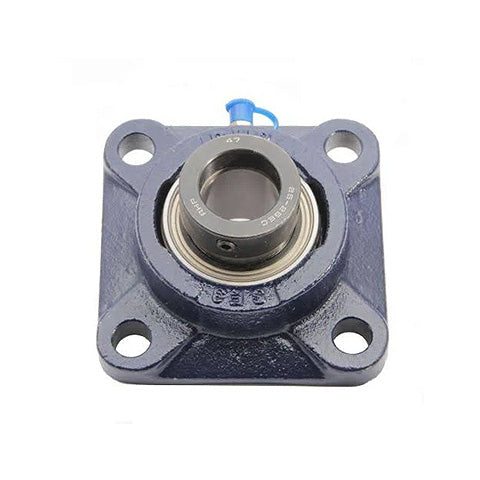

RHP SF3/4DEC Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Eccentric Collar Full Width Insert
RHP SF3/4DEC Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Eccentric Collar Full Width Insert
Regular price
$56.02
ex VAT
Regular price
Sale price
$56.02
ex VAT
In stock
Price Break
10+
$49.86
19+
$47.06
29+
$46.50
39+
$45.94
49+
$45.38
74+
$44.82
99+
$42.02
199+
$41.45
249+
$40.89
499+
$40.33
999+
$39.21
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 3.374 inch |
| H | 2.374 inch |
| J | 2.5 inch |
| G | 0.375 inch |
| A | 1.094 inch |
| A3 | 1.793 inch |
| A4 | 0.437 inch |
| B3 | 1.717 inch |
| s2 | 0.674 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static Load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
