• RHP SFT1-7/8 Two Bolt Oval Cast Iron Flange Housing 1-7/8 inch Bore Insert
1 1

SKU: SFT1.7/8-RHP

RHP SFT1-7/8 Two Bolt Oval Cast Iron Flange Housing 1-7/8 inch Bore Insert

RHP SFT1-7/8 Two Bolt Oval Cast Iron Flange Housing 1-7/8 inch Bore Insert
$112.59 ex VAT
$112.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $100.21
19+ $94.58
29+ $93.45
39+ $92.32
49+ $91.20
74+ $90.07
99+ $84.44
199+ $83.32
249+ $82.19
499+ $81.06
999+ $78.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Style:
SFT
Bolt Hole Centres:
156.997mm = 6.181 inch

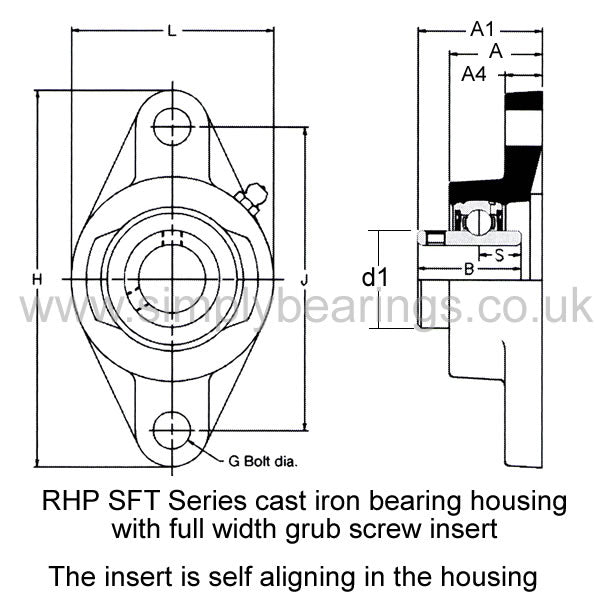

Technical
Bore 1-7/8 inch
L 4.563 inch
H 7.437 inch
J 6.181 inch
G 0.625 inch
A 1.563 inch
A1 2.283 inch
A4 0.563 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.5 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-7/8G+insonly">1050-1-7/8G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
