SKU: SFT25-RHP

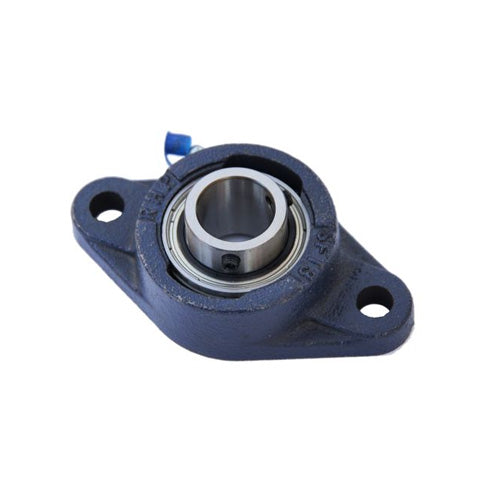

RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
$50.56
ex VAT
Regular price
Sale price
$50.56
ex VAT
In stock
Price Break
10+
$45.00
19+
$42.47
29+
$41.96
39+
$41.46
49+
$40.95
74+
$40.45
99+
$37.92
199+
$37.41
249+
$36.91
499+
$36.40
999+
$35.39
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A1 | 38.84mm |
| A4 | 11.1mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
