SKU: SFT25DEC-RHP

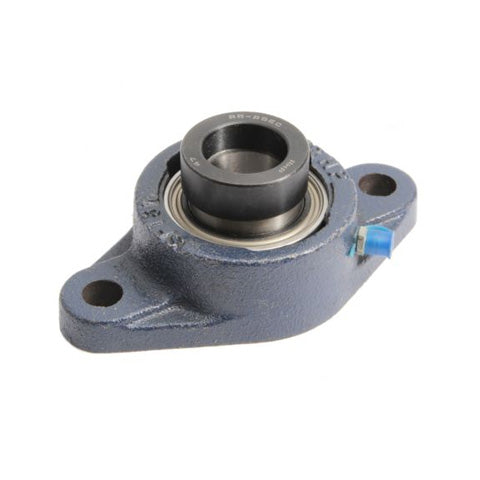

RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
$59.79
ex VAT
Regular price
Sale price
$59.79
ex VAT
In stock
Price Break
10+
$53.21
19+
$50.22
29+
$49.63
39+
$49.03
49+
$48.43
74+
$47.83
99+
$44.84
199+
$44.24
249+
$43.65
499+
$43.05
999+
$41.85
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A3 | 45.95mm |
| A4 | 11.1mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
