• RHP SFT2DEC Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
1 1

SKU: SFT2DEC-RHP

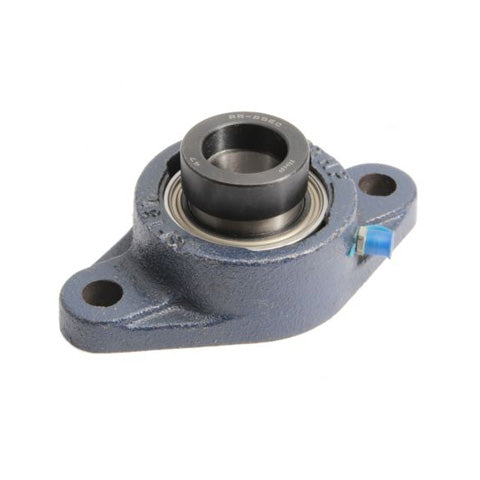

RHP SFT2DEC Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert

RHP SFT2DEC Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
$180.52 ex VAT
$180.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $160.66
19+ $151.64
29+ $149.83
39+ $148.03
49+ $146.22
74+ $144.42
99+ $135.39
199+ $133.58
249+ $131.78
499+ $129.97
999+ $126.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SFT
Bolt Hole Centres:
183.998mm = 7.244 inch
Technical
Bore 2 inch
L 5 inch
H 8.5 inch
J 7.244 inch
G 0.625 inch
A 1.72 inch
A3 2.936 inch
A4 0.689 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1055-2DECG+insonly">1055-2DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
