SKU: SIKAC16M-CDX

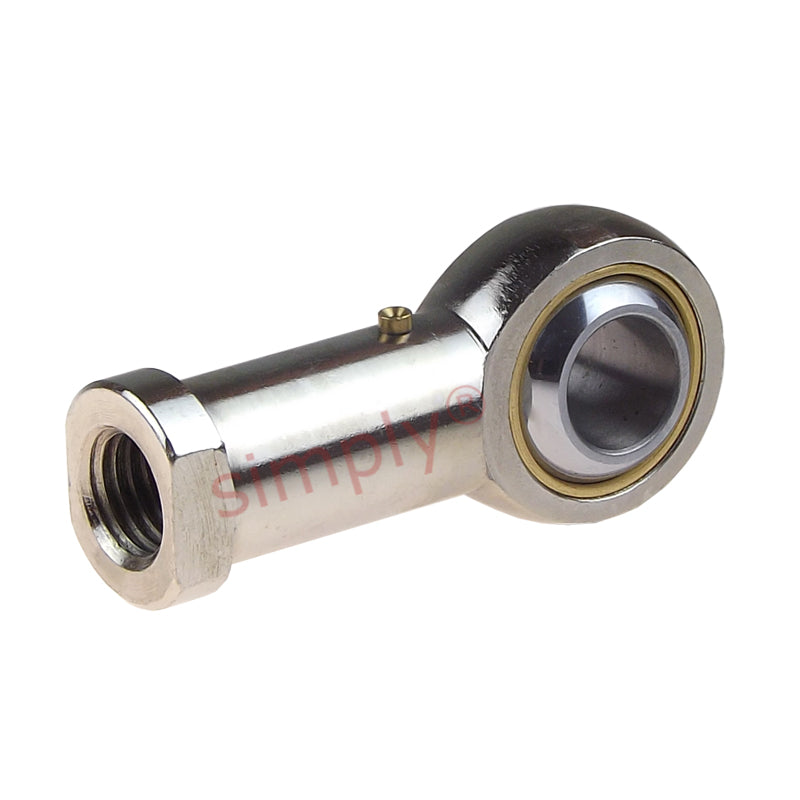

Codex SIKAC16M Right Hand Steel / Bronze Lined Plain Female Rod End M16 Thread
Codex SIKAC16M Right Hand Steel / Bronze Lined Plain Female Rod End M16 Thread
Regular price
$37.41
ex VAT
Regular price
Sale price
$37.41
ex VAT
Equivalent to: GIKF16PB TSF16 SIBP16S PHS16 SF16 FB-M16
In stock
Price Break
10+
$33.29
19+
$31.42
29+
$31.05
39+
$30.68
49+
$30.30
74+
$29.93
99+
$28.06
199+
$27.68
249+
$27.31
499+
$26.94
999+
$26.19
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF16PB TSF16 SIBP16S PHS16 SF16 FB-M16
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h1 | 64mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 21.6 kN |
| Static load | 29 kN |
| dk | 28.5mm |
| d3 | 22mm |
| d4 max | 29mm |
| l3 min | 24mm |
| l4 max | 87mm |
| l5 | 8mm |
| l7 min | 21mm |
| r1 min | 0.3mm |
| w | 22mm |
| Weight | 0.22 kg |
