SKU: SIL15C-SKF

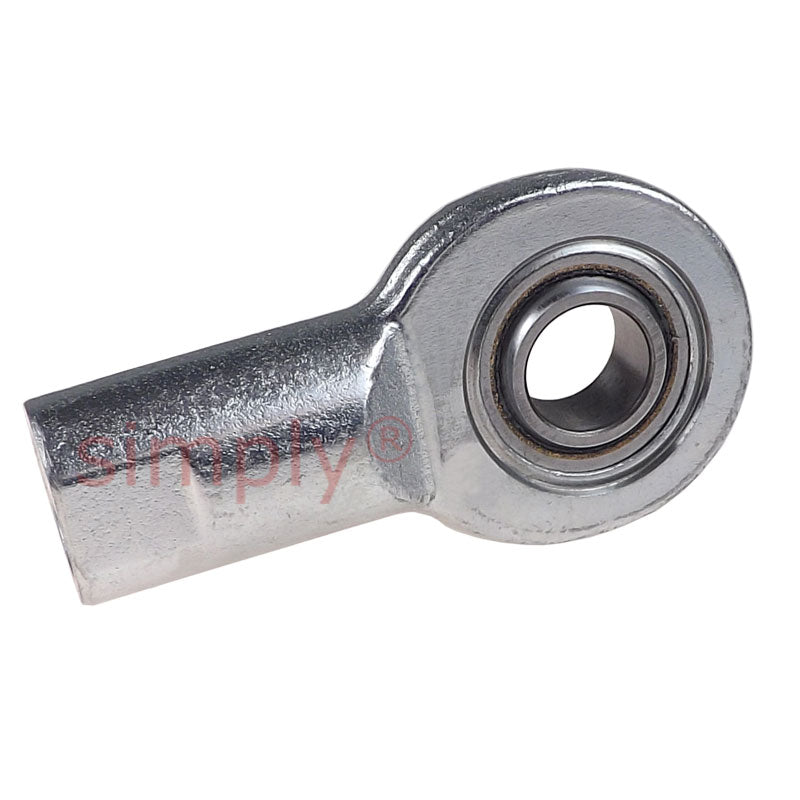

SKF SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
SKF SIL15C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M14 Thread
Regular price
$68.44
ex VAT
Regular price
Sale price
$68.44
ex VAT
Equivalent to: GIL15UK
In stock
Price Break
10+
$60.91
19+
$57.49
29+
$56.81
39+
$56.12
49+
$55.44
74+
$54.75
99+
$51.33
199+
$50.65
249+
$49.96
499+
$49.28
999+
$47.91
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL15UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 15mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 15mm |
|---|---|
| d2 max | 41mm |
| G 6H | M14 |
| B | 12mm |
| C1 max | 10.5mm |
| h1 | 61mm |
| a | 8deg |
| Dynamic load C | 18 kN |
| Static load Co | 37.5 kN |
| Weight | 0.18 kg |
| dk | 22mm |
| d4 | 22mm |
| l3 min | 21mm |
| l4 max | 83mm |
| l5 | 14mm |
| l7 min | 19mm |
| r1 min | 0.3mm |
| w h14 | 19mm |
