SKU: SILKAC8M-CDX

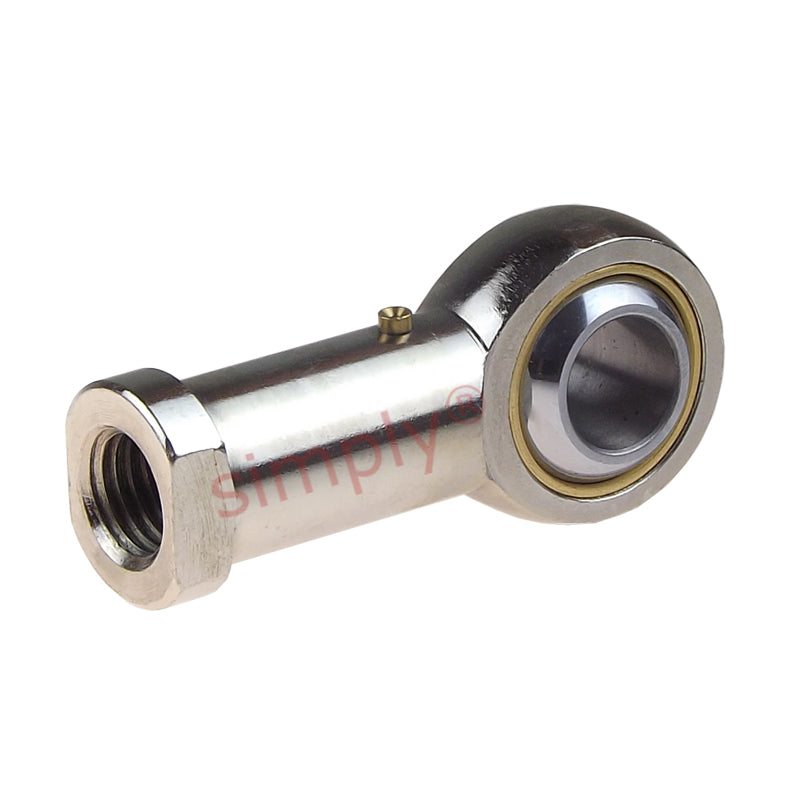

Codex SILKAC8M Left Hand Steel / Bronze Lined Plain Female Rod End M8 Thread
Codex SILKAC8M Left Hand Steel / Bronze Lined Plain Female Rod End M8 Thread
Regular price
$14.01
ex VAT
Regular price
Sale price
$14.01
ex VAT
Equivalent to: TSFL8 PHSL8 SILBP8S PHS8L FBL-M08
In stock
Price Break
10+
$12.47
19+
$11.77
29+
$11.63
39+
$11.49
49+
$11.35
74+
$11.21
99+
$10.51
199+
$10.37
249+
$10.23
499+
$10.09
999+
$9.81
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: TSFL8 PHSL8 SILBP8S PHS8L FBL-M08
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Material:
- Bronze Lined

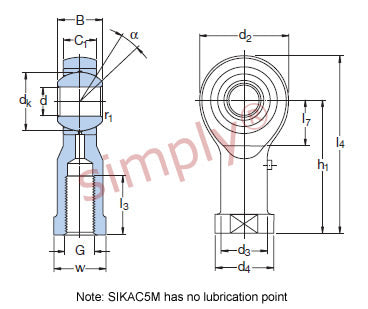

Technical
Technical
| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 12mm |
| C1 max | 9mm |
| h1 | 36mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 7.2 kN |
| Static load | 9.15 kN |
| dk | 15.8mm |
| d3 | 12.5mm |
| d4 max | 17mm |
| l3 min | 12mm |
| l4 max | 50mm |
| l5 | 5mm |
| l7 min | 12mm |
| r1 min | 0.3mm |
| w | 14mm |
| Weight | 0.043 kg |
