SKU: SL1.1/4-RHP

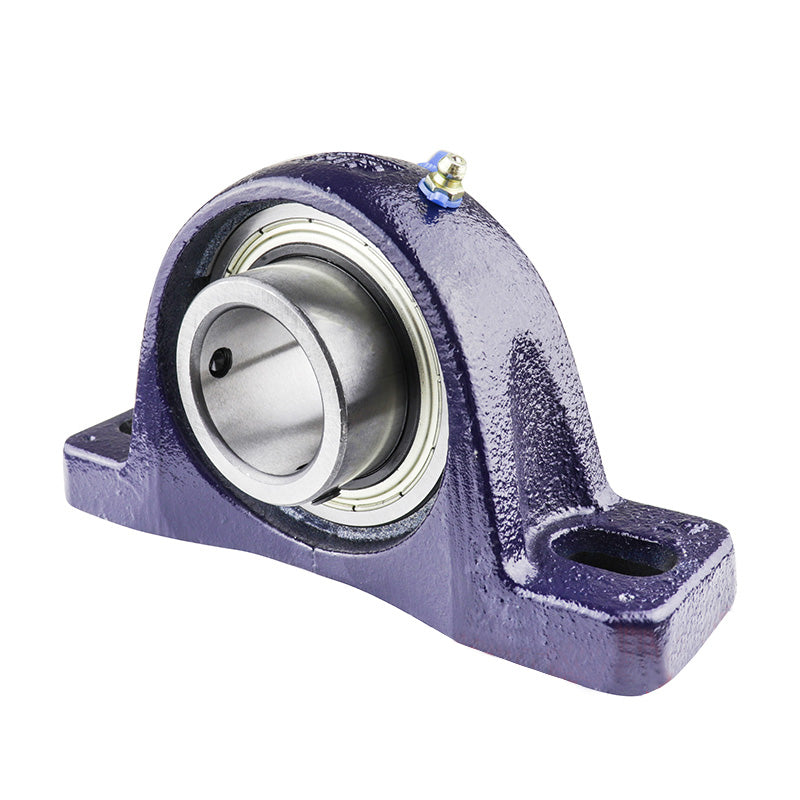

RHP SL1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Full Width Insert
RHP SL1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Full Width Insert
Regular price
$74.72
ex VAT
Regular price
Sale price
$74.72
ex VAT
In stock
Price Break
10+
$66.50
19+
$62.76
29+
$62.02
39+
$61.27
49+
$60.52
74+
$59.78
99+
$56.04
199+
$55.29
249+
$54.55
499+
$53.80
999+
$52.30
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 6.535 inch |
| H | 1.812 inch |
| H1 | 0.63 inch |
| H2 | 3.602 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| s1 | 0.376 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
