SKU: SL1.1/8DEC-RHP

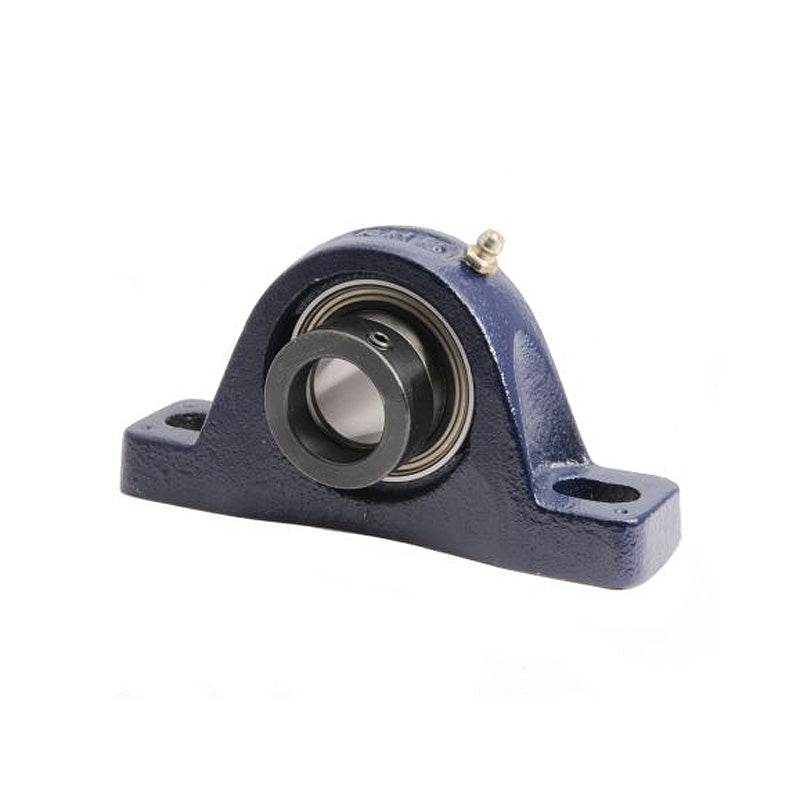

RHP SL1-1/8DEC Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Eccentric Collar Full Width Insert
RHP SL1-1/8DEC Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Eccentric Collar Full Width Insert
Regular price
$76.90
ex VAT
Regular price
Sale price
$76.90
ex VAT
In stock
Price Break
10+
$68.44
19+
$64.60
29+
$63.83
39+
$63.06
49+
$62.29
74+
$61.52
99+
$57.68
199+
$56.91
249+
$56.14
499+
$55.37
999+
$53.83
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.291-5.118 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 6.358 inch |
| H | 1.562 inch |
| H1 | 0.571 inch |
| H2 | 3.13 inch |
| J max | 5.118 inch |
| J min | 4.291 inch |
| G | 0.5 inch |
| A | 1.614 inch |
| A1 | 1.083 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8DECG+insonly">1030-1-1/8DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
