SKU: SL1.15/16DEC-RHP

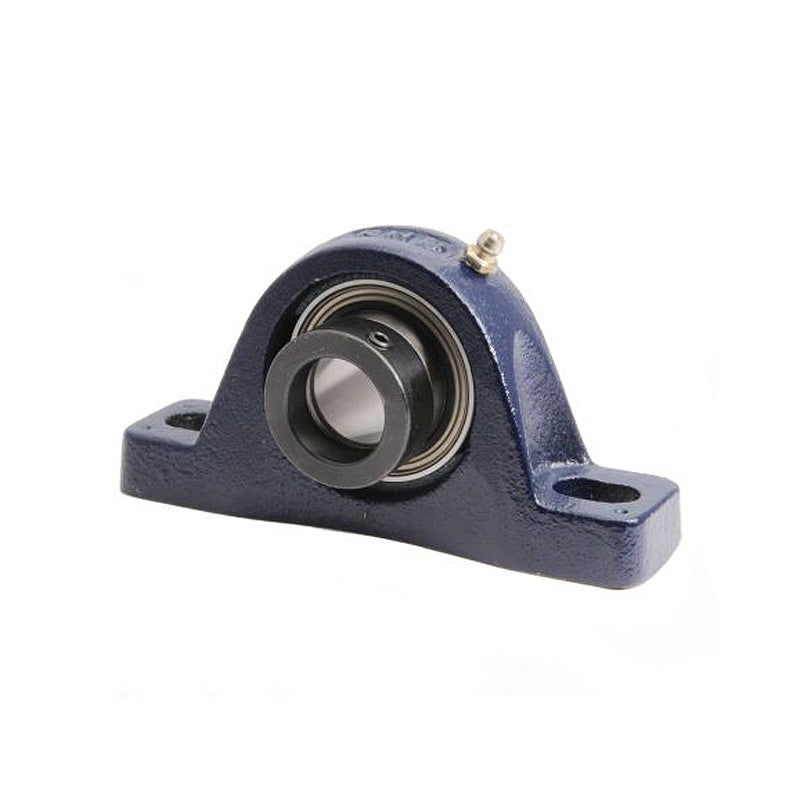

RHP SL1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
RHP SL1-15/16DEC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentric Collar Full Width Insert
Regular price
$135.54
ex VAT
Regular price
Sale price
$135.54
ex VAT
In stock
Price Break
10+
$120.63
19+
$113.85
29+
$112.50
39+
$111.14
49+
$109.79
74+
$108.43
99+
$101.66
199+
$100.30
249+
$98.94
499+
$97.59
999+
$94.88
Couldn't load pickup availability
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.945-6.969 inch
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 8.425 inch |
| H | 2.187 inch |
| H1 | 0.76 inch |
| H2 | 4.488 inch |
| J max | 6.969 inch |
| J min | 5.945 inch |
| G | 0.5 inch |
| A | 2.165 inch |
| A1 | 1.417 inch |
| B3 | 2.469 inch |
| s2 | 0.97 inch |
| d2 | 2.75 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-15/16DECG+insonly">1050-1-15/16DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
