SKU: SL1.3/16EC-RHP

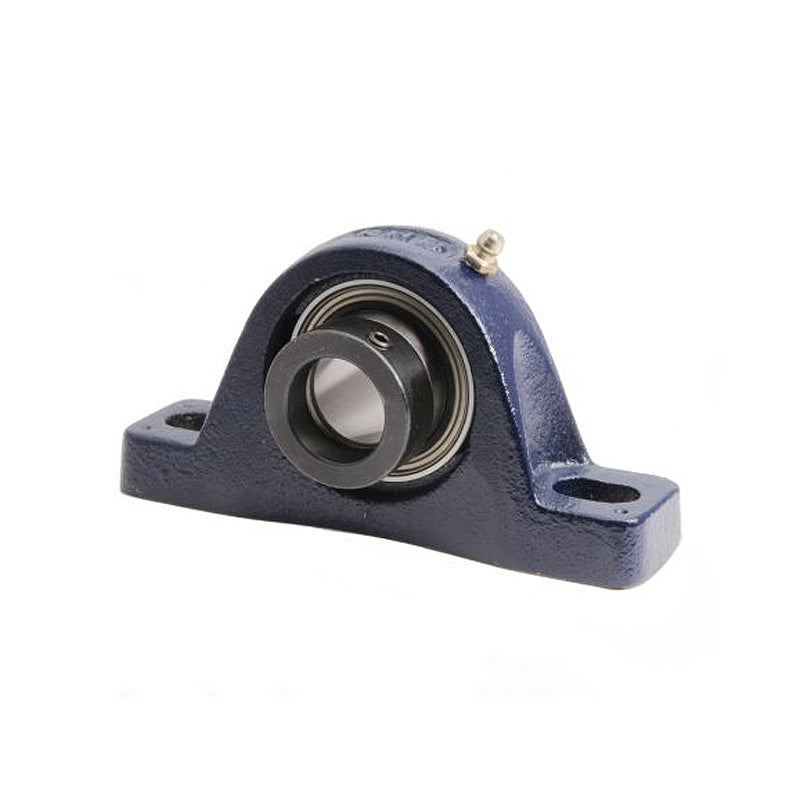

RHP SL1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentic Collar Flat Back Insert
RHP SL1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentic Collar Flat Back Insert
Regular price
$148.73
ex VAT
Regular price
Sale price
$148.73
ex VAT
In stock
Price Break
10+
$132.37
19+
$124.93
29+
$123.45
39+
$121.96
49+
$120.47
74+
$118.98
99+
$111.55
199+
$110.06
249+
$108.57
499+
$107.09
999+
$104.11
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.291-5.118 inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 6.358 inch |
| H | 1.562 inch |
| H1 | 0.571 inch |
| H2 | 3.13 inch |
| J max | 5.118 inch |
| J min | 4.291 inch |
| G | 0.5 inch |
| A | 1.614 inch |
| A1 | 1.083 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-3/16ECG+insonly">1230-1-3/16ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
