SKU: SL2-RHP

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
$145.84 ex VAT
$145.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $129.80
19+ $122.51
29+ $121.05
39+ $119.59
49+ $118.13
74+ $116.67
99+ $109.38
199+ $107.92
249+ $106.46
499+ $105.00
999+ $102.09
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

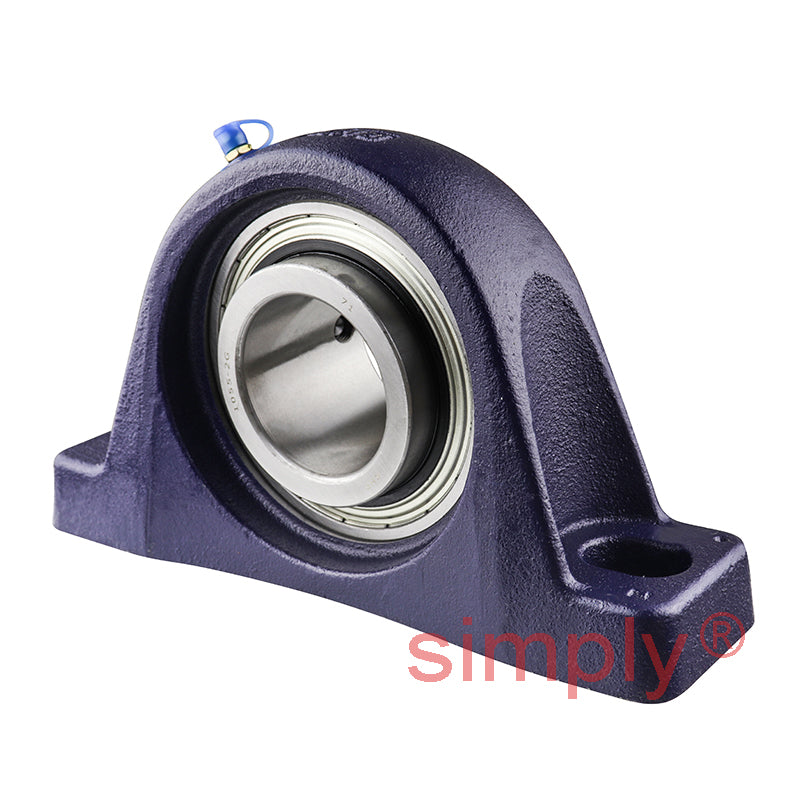

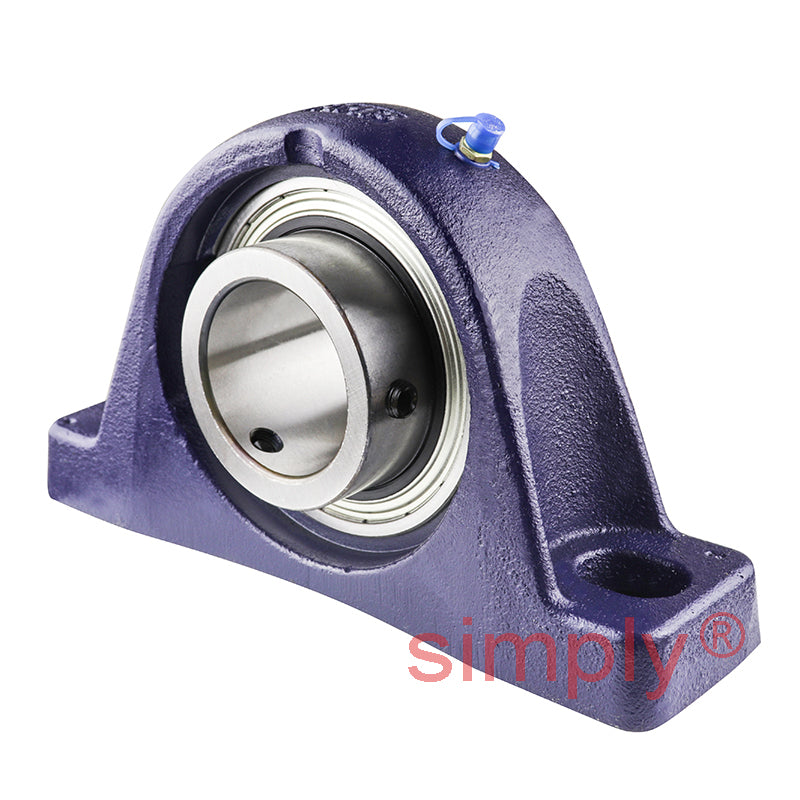

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SL
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2 inch
L 8.641 inch
H 2.437 inch
H1 0.913 inch
H2 5.039 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.187 inch
s 0.877 inch
s1 - inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
