SKU: SL2R-RHP

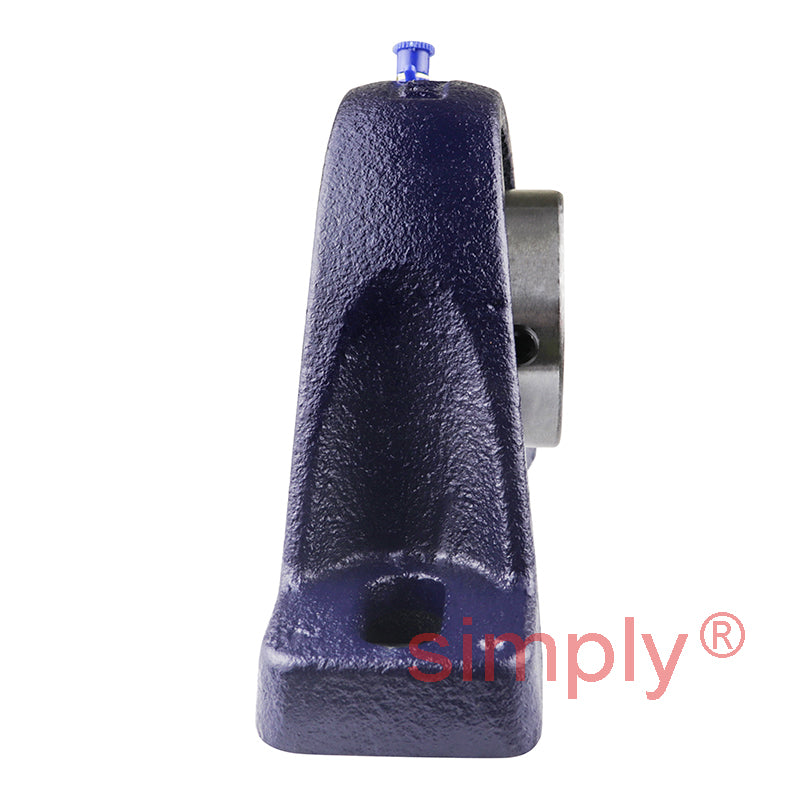

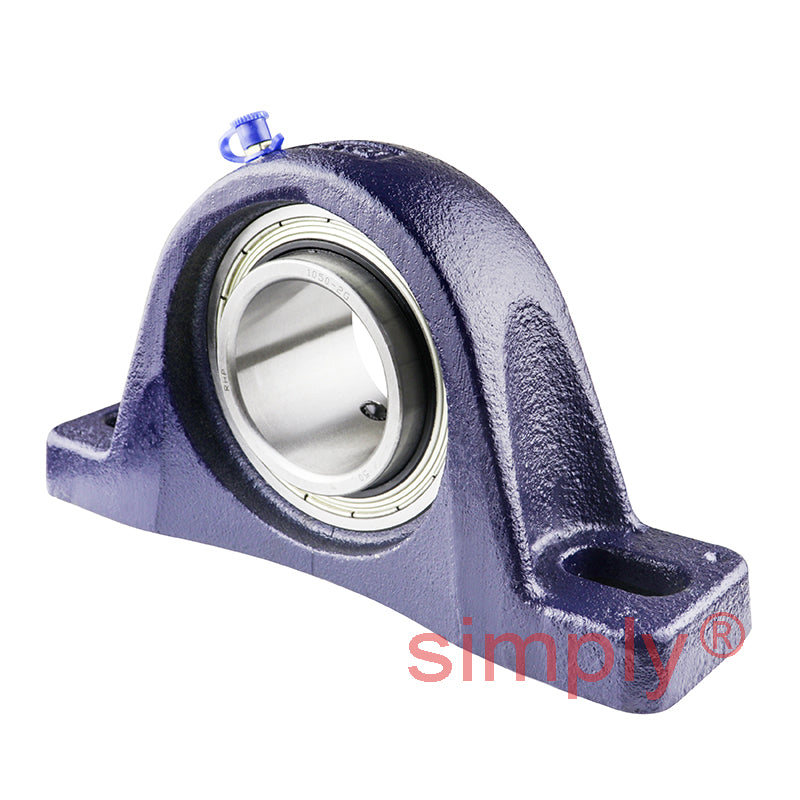

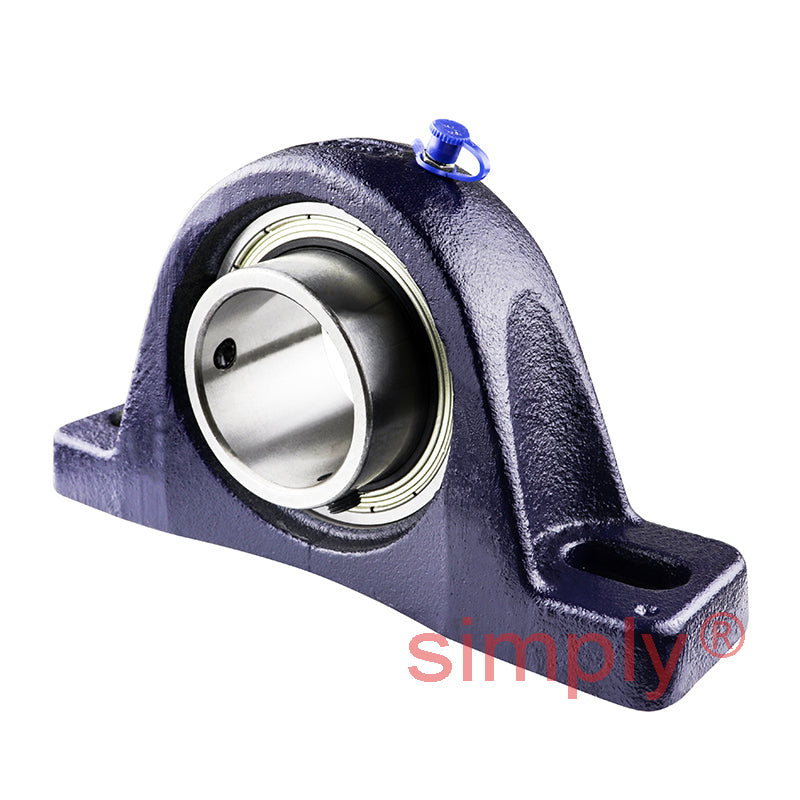

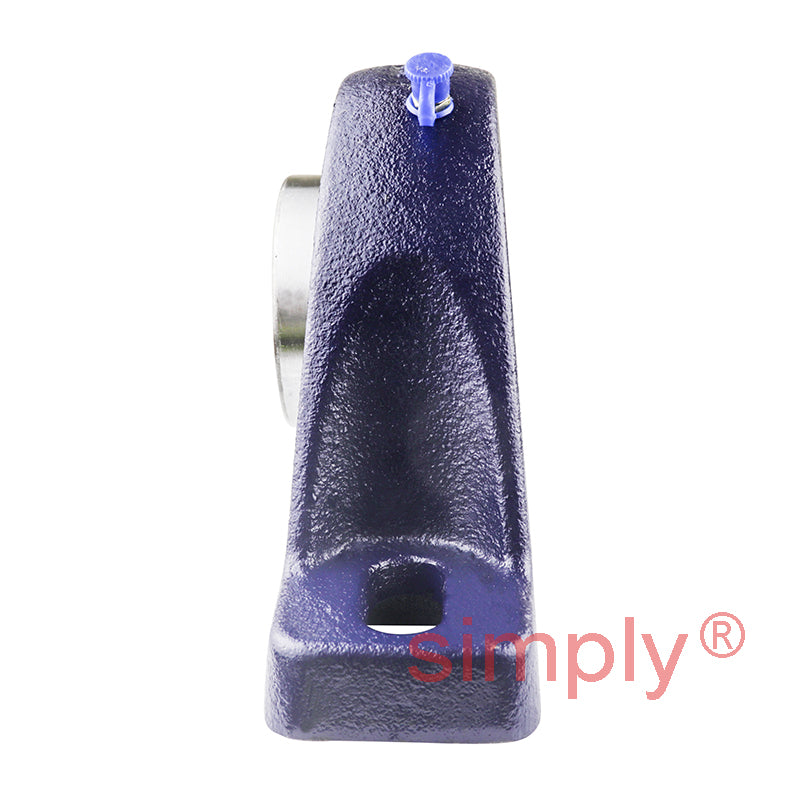

RHP SL2R Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert

RHP SL2R Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
$112.59 ex VAT
$112.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $100.21
19+ $94.58
29+ $93.45
39+ $92.32
49+ $91.20
74+ $90.07
99+ $84.44
199+ $83.32
249+ $82.19
499+ $81.06
999+ $78.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SL
Bolt Hole Centres:
5.945-6.969 inch
Technical
Bore 2 inch
L 8.425 inch
H 2.187 inch
H1 0.76 inch
H2 4.488 inch
J max 6.969 inch
J min 5.945 inch
G 0.5 inch
A 2.165 inch
A1 1.417 inch
B 2.031 inch
s 0.752 inch
s1 0.435 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
