SKU: SL7/8-RHP

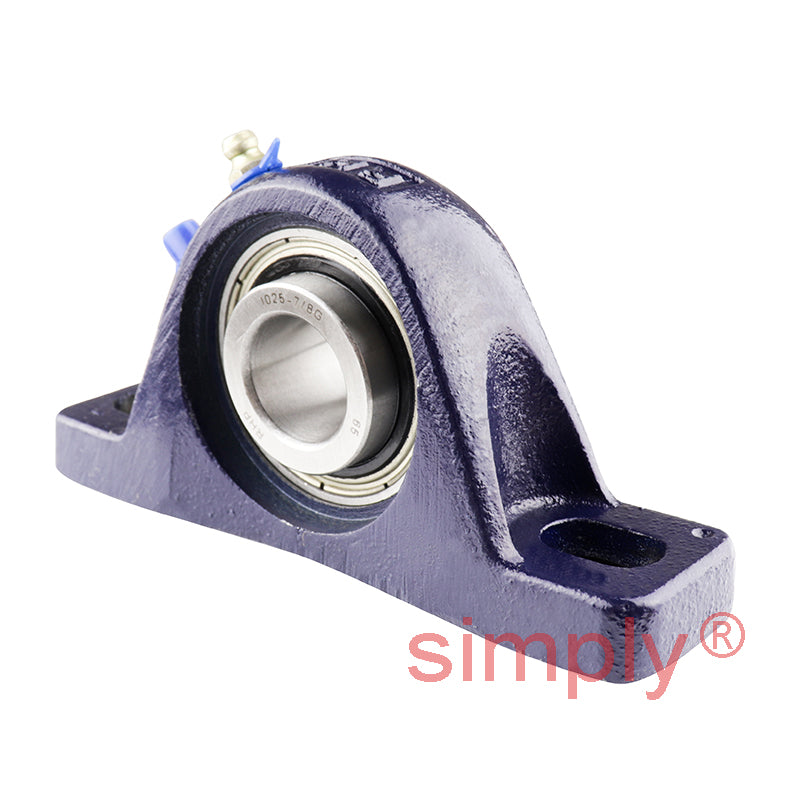

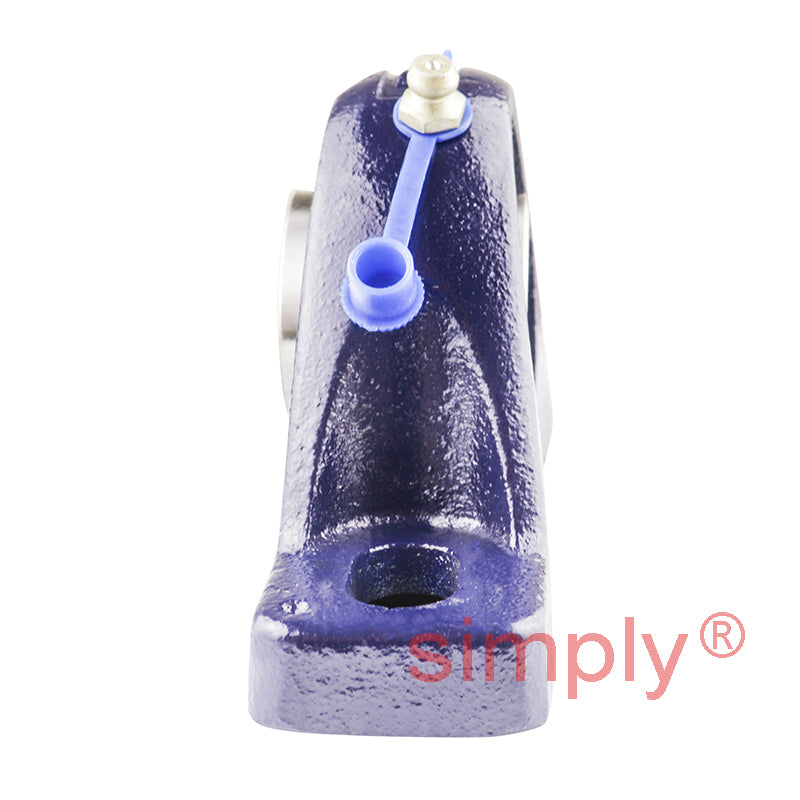

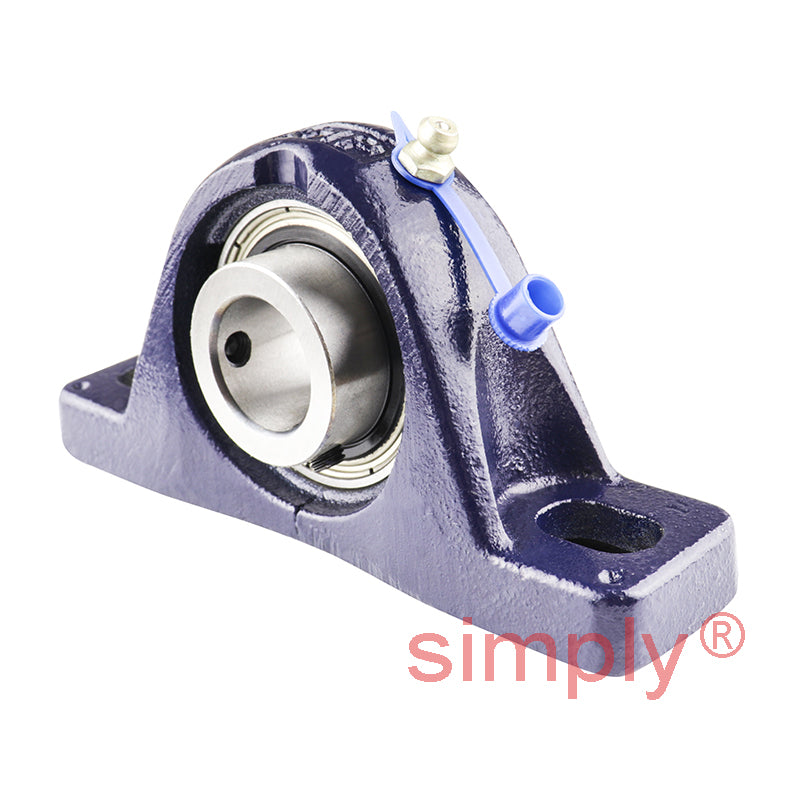

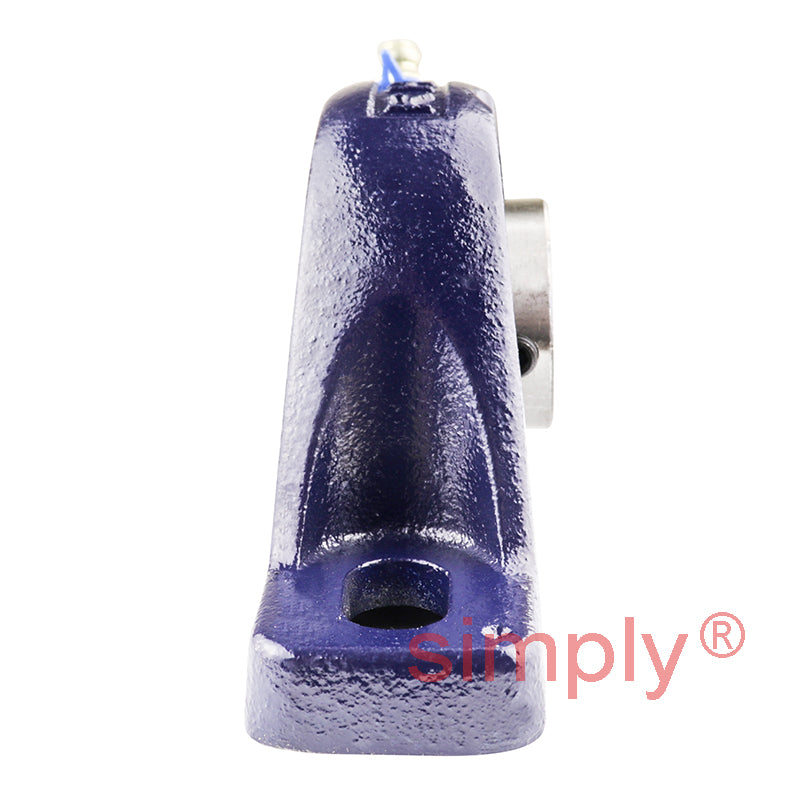

RHP SL7/8 Two Bolt Cast Iron Pillow Block and 7/8 Bore Grub Screw Full Width Insert
RHP SL7/8 Two Bolt Cast Iron Pillow Block and 7/8 Bore Grub Screw Full Width Insert
Regular price
$39.91
ex VAT
Regular price
Sale price
$39.91
ex VAT
In stock
Price Break
10+
$35.52
19+
$33.52
29+
$33.13
39+
$32.73
49+
$32.33
74+
$31.93
99+
$29.93
199+
$29.53
249+
$29.13
499+
$28.74
999+
$27.94
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
