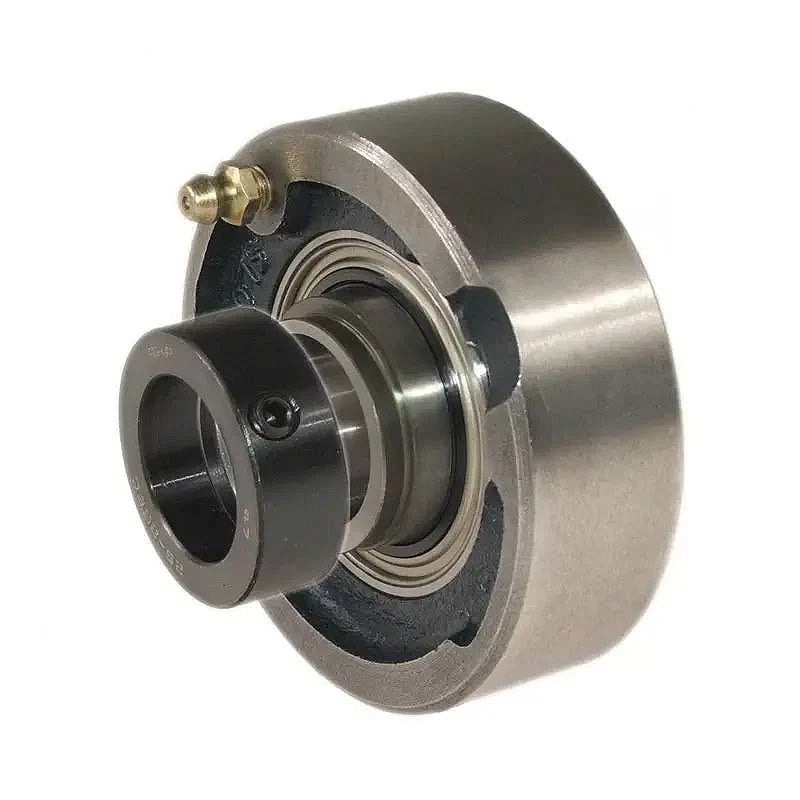

• RHP SLC1-1/2DEC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter
1 1

SKU: SLC1.1/2DEC-RHP

RHP SLC1-1/2DEC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter

RHP SLC1-1/2DEC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter
$112.07 ex VAT
$112.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $99.74
19+ $94.14
29+ $93.02
39+ $91.90
49+ $90.78
74+ $89.66
99+ $84.05
199+ $82.93
249+ $81.81
499+ $80.69
999+ $78.45
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
106.39mm
Style:
SLC
Technical
Bore 1-1/2 inch
L 4.1885 inch
A 1.469 inch
A3 2.109 inch
B3 2.218 inch
s2 0.845 inch
d2 2.374 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
