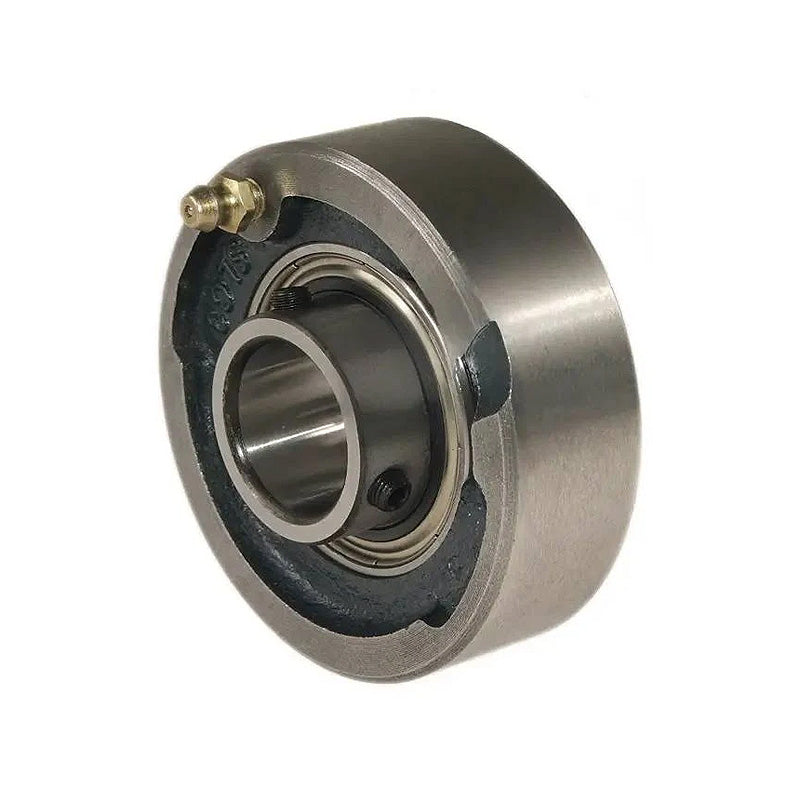

• RHP SLC1-1/8 Cast Iron Cartridge Unit with 1-1/8 inch Bore Insert 88.93mm Outside Diameter
1 1

SKU: SLC1.1/8-RHP

RHP SLC1-1/8 Cast Iron Cartridge Unit with 1-1/8 inch Bore Insert 88.93mm Outside Diameter

RHP SLC1-1/8 Cast Iron Cartridge Unit with 1-1/8 inch Bore Insert 88.93mm Outside Diameter
$68.60 ex VAT
$68.60 ex VAT
Sale Sold out

In stock

Price Break
10+ $61.05
19+ $57.62
29+ $56.94
39+ $56.25
49+ $55.57
74+ $54.88
99+ $51.45
199+ $50.76
249+ $50.08
499+ $49.39
999+ $48.02
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
88.93mm
Style:
SLC
Technical
Bore 1-1/8 inch
L 3.501 inch
A 1.094 inch
A1 1.422 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/8G+insonly">1030-1-1/8G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
