SKU: SLC1.11/16-RHP

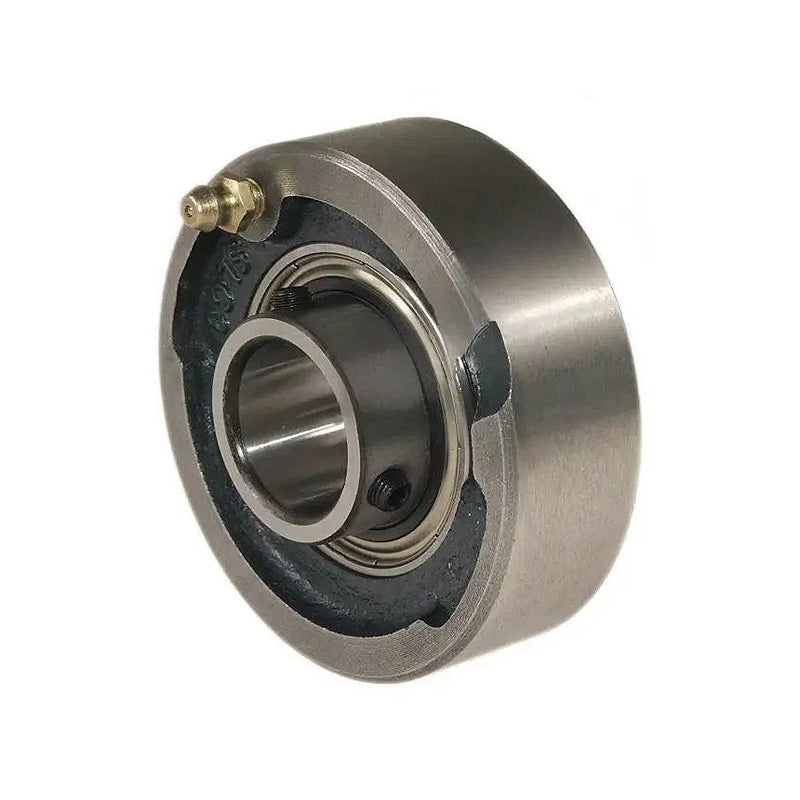

RHP SLC1-11/16 Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-11/16 Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
Regular price
$108.07
ex VAT
Regular price
Sale price
$108.07
ex VAT
In stock
Price Break
10+
$96.18
19+
$90.78
29+
$89.70
39+
$88.62
49+
$87.54
74+
$86.46
99+
$81.05
199+
$79.97
249+
$78.89
499+
$77.81
999+
$75.65
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A1 | 1.907 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
