SKU: SLC1.15/16-RHP

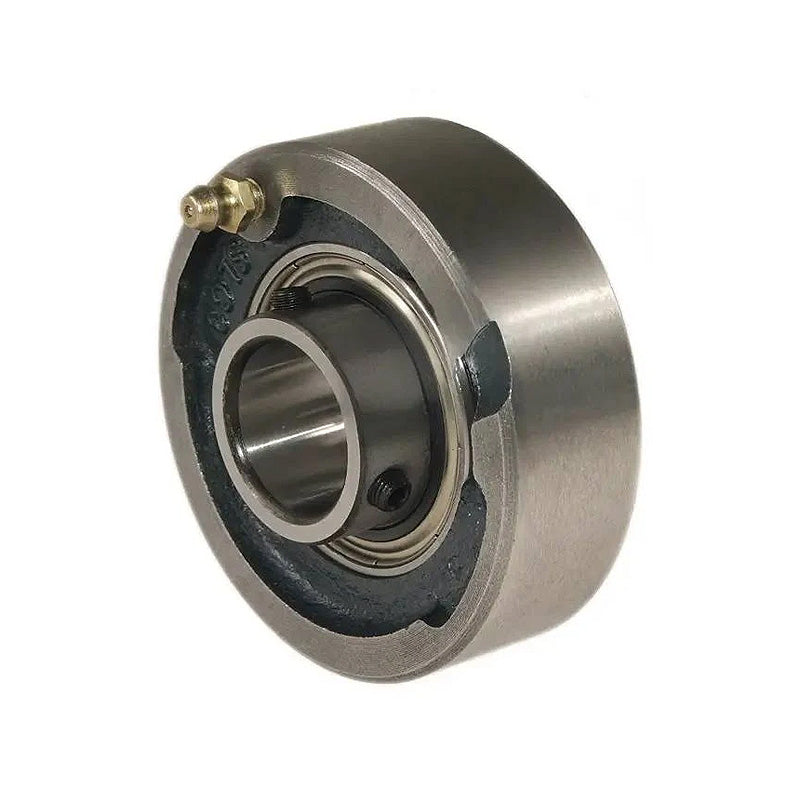

RHP SLC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 115.91mm Outside Diameter
RHP SLC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 115.91mm Outside Diameter
Regular price
$127.29
ex VAT
Regular price
Sale price
$127.29
ex VAT
In stock
Price Break
10+
$113.29
19+
$106.92
29+
$105.65
39+
$104.38
49+
$103.10
74+
$101.83
99+
$95.47
199+
$94.19
249+
$92.92
499+
$91.65
999+
$89.10
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 115.91mm
- Style:
- SLC
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 4.5635 inch |
| A | 1.469 inch |
| A1 | 2.015 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
