SKU: SLC15-RHP

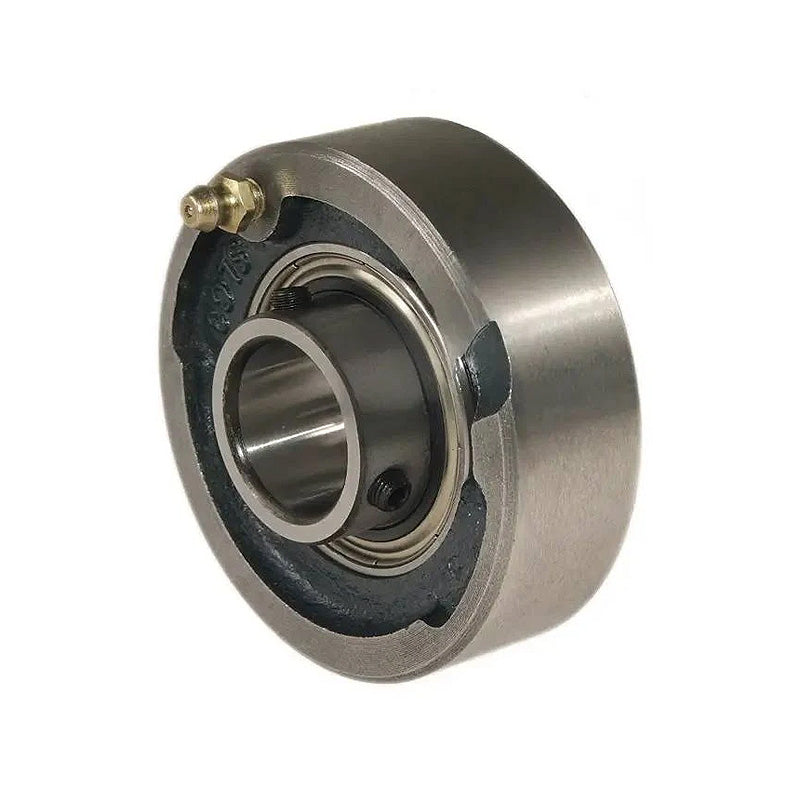

RHP SLC15 Cast Iron Cartridge Unit with 15mm Bore Insert 68.29mm Outside Diameter
RHP SLC15 Cast Iron Cartridge Unit with 15mm Bore Insert 68.29mm Outside Diameter
Regular price
$51.90
ex VAT
Regular price
Sale price
$51.90
ex VAT
In stock
Price Break
10+
$46.19
19+
$43.60
29+
$43.08
39+
$42.56
49+
$42.04
74+
$41.52
99+
$38.93
199+
$38.41
249+
$37.89
499+
$37.37
999+
$36.33
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 68.29mm
- Style:
- SLC
Technical
Technical
| Bore | 15mm |
|---|---|
| L | 68.287mm |
| A | 22.22mm |
| A1 | 24.21mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-15G+insonly">1017-15G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
