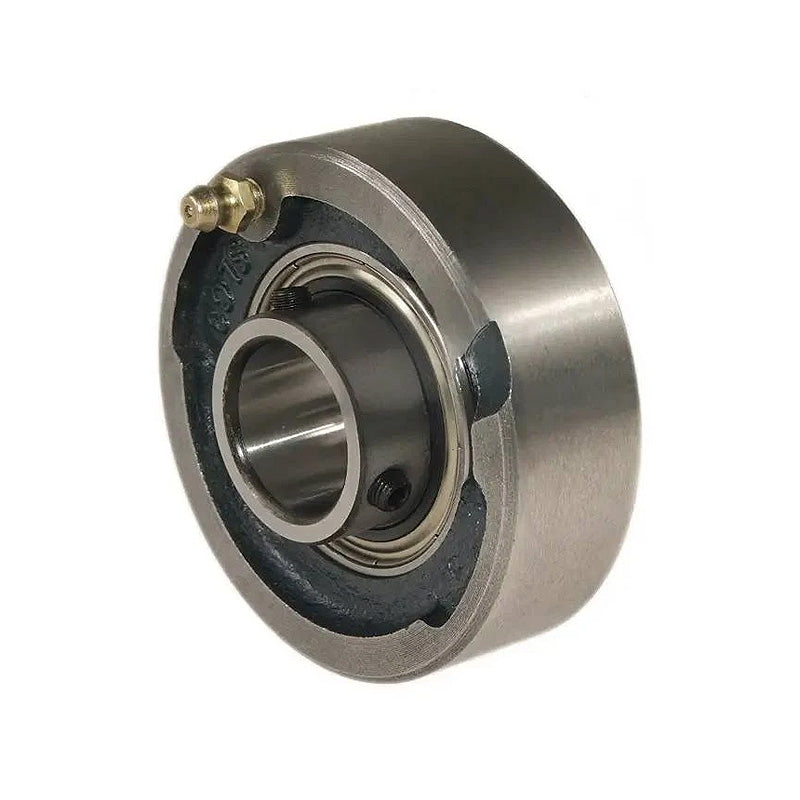

• RHP SLC2-3/8 Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter
1 1

SKU: SLC2.3/8-RHP

RHP SLC2-3/8 Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter

RHP SLC2-3/8 Cast Iron Cartridge Unit with 2-3/8 inch Bore Insert 149.25mm Outside Diameter
$191.08 ex VAT
$191.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $170.06
19+ $160.51
29+ $158.60
39+ $156.69
49+ $154.77
74+ $152.86
99+ $143.31
199+ $141.40
249+ $139.49
499+ $137.58
999+ $133.76
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
60.33mm = 2.375 (2-3/8) inch
Outside Diameter:
149.25mm
Style:
SLC
Technical
Bore 2-3/8 inch
L 5.876 inch
A 1.625 inch
A1 2.374 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-3/8G+insonly">1060-2-3/8G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
