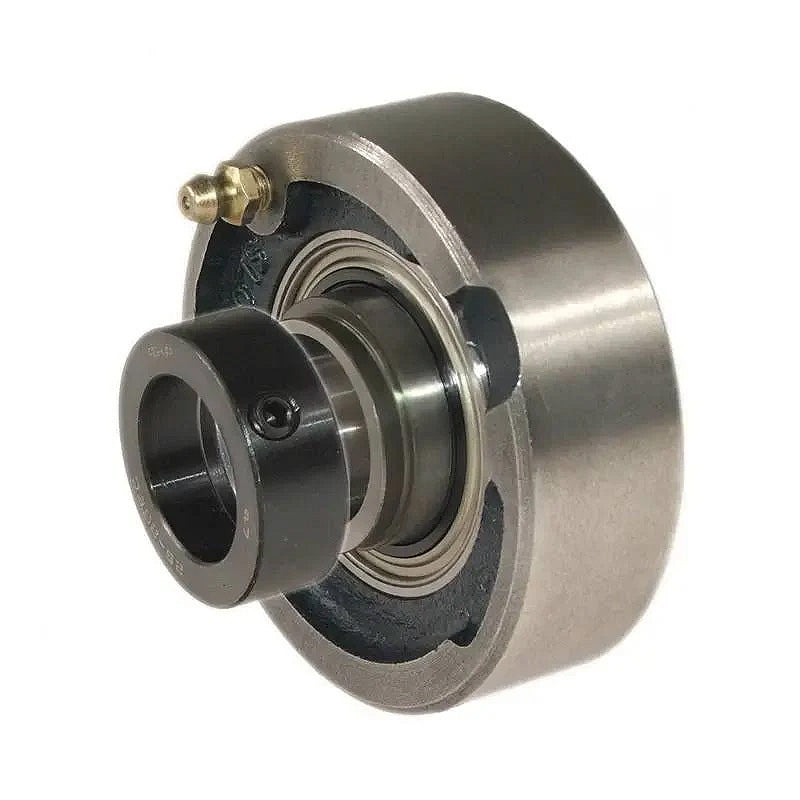

• RHP SLC2-7/16DEC Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 149.25mm Outside Diameter
1 1

SKU: SLC2.7/16DEC-RHP

RHP SLC2-7/16DEC Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 149.25mm Outside Diameter

RHP SLC2-7/16DEC Cast Iron Cartridge Unit with 2-7/16 inch Bore Insert 149.25mm Outside Diameter
$241.11 ex VAT
$241.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $214.59
19+ $202.53
29+ $200.12
39+ $197.71
49+ $195.30
74+ $192.89
99+ $180.83
199+ $178.42
249+ $176.01
499+ $173.60
999+ $168.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
149.25mm
Style:
SLC
Technical
Bore 2-7/16 inch
L 5.876 inch
A 1.625 inch
A3 2.653 inch
B3 3.064 inch
s2 1.221 inch
d2 3.312 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.4 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
