SKU: SLC2-RHP
RHP SLC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
RHP SLC2 Cast Iron Cartridge Unit with 2 inch Bore Insert 125.44mm Outside Diameter
Regular price
$176.01
ex VAT
Regular price
Sale price
$176.01
ex VAT
In stock
Price Break
10+
$156.65
19+
$147.85
29+
$146.09
39+
$144.33
49+
$142.57
74+
$140.81
99+
$132.01
199+
$130.25
249+
$128.49
499+
$126.73
999+
$123.21
Couldn't load pickup availability
Description
Description
|

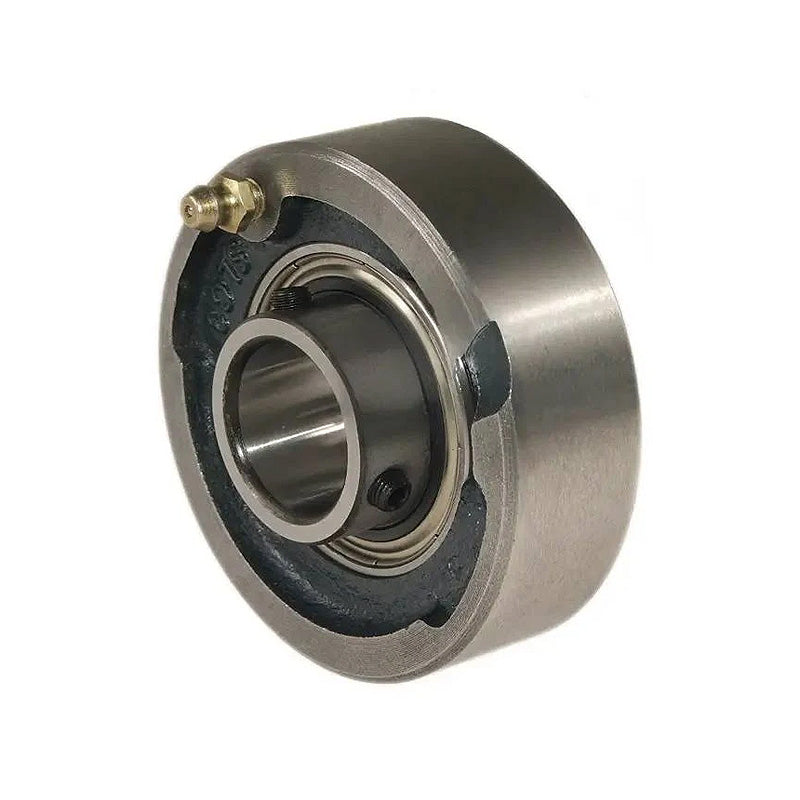

RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 125.44mm
- Style:
- SLC
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 4.9385 inch |
| A | 1.594 inch |
| A1 | 2.109 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
