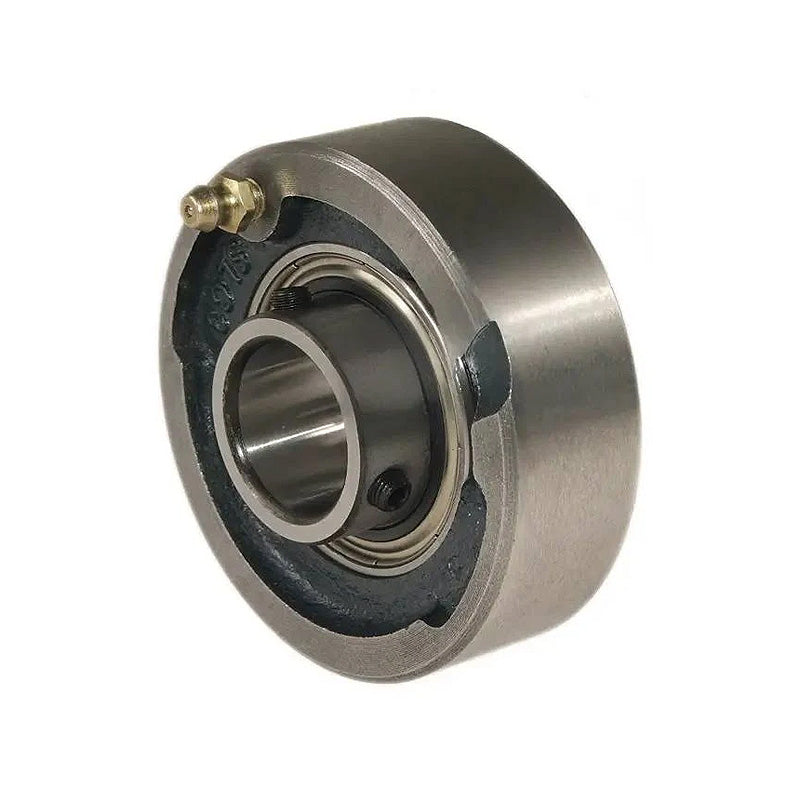

• RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
1 1

SKU: SLC20A-RHP

RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter

RHP SLC20A Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
$52.03 ex VAT
$52.03 ex VAT
Sale Sold out

In stock

Price Break
10+ $46.31
19+ $43.71
29+ $43.18
39+ $42.66
49+ $42.14
74+ $41.62
99+ $39.02
199+ $38.50
249+ $37.98
499+ $37.46
999+ $36.42
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Outside Diameter:
74.64mm
Style:
SLC
Technical
Bore 20mm
L 74.637mm
A 22.22mm
A1 29.39mm
A2 34.54mm
A3 37.67mm
B 30.96mm
B1 25.77mm
B2 30.92mm
B3 43.62mm
s 12.75mm
s1 7.56mm
s2 17.12mm
d1 28.5mm
d2 33.3mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
