• RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
1 1

SKU: SLC20EC-RHP

RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter

RHP SLC20EC Cast Iron Cartridge Unit with 20mm Bore Insert 74.64mm Outside Diameter
$52.96 ex VAT
$52.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.13
19+ $44.49
29+ $43.96
39+ $43.43
49+ $42.90
74+ $42.37
99+ $39.72
199+ $39.19
249+ $38.66
499+ $38.13
999+ $37.07
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

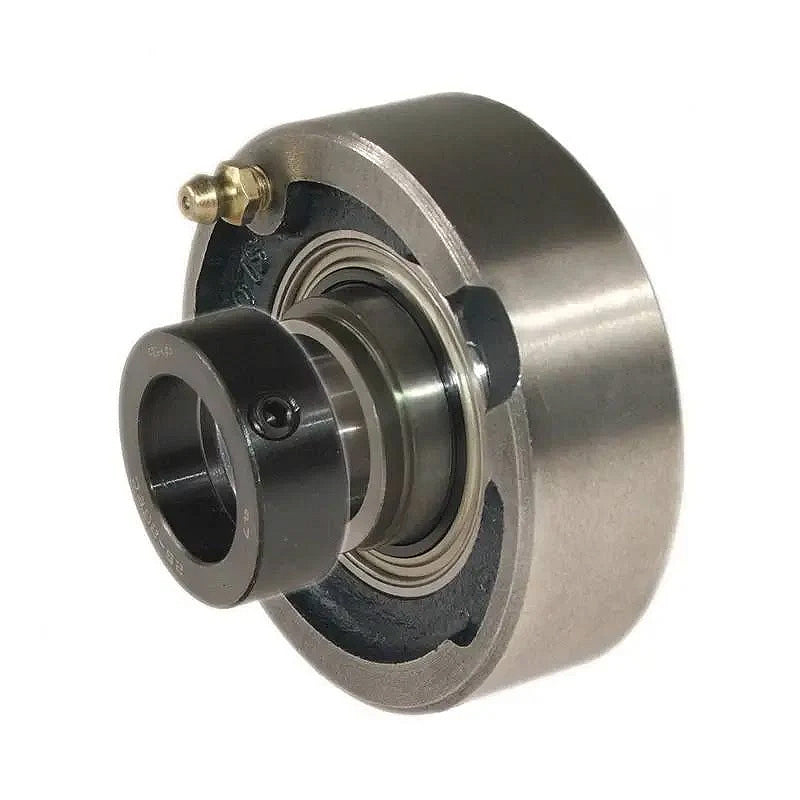

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Outside Diameter:
74.64mm
Style:
SLC
Technical
Bore 20mm
L 74.637mm
A 22.22mm
A2 34.54mm
B2 30.92mm
s1 7.56mm
d2 33.3mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-20ECG+insonly">1020-20ECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
