• RHP SLC25 Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
1 1

SKU: SLC25-RHP

RHP SLC25 Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter

RHP SLC25 Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
$51.12 ex VAT
$51.12 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.50
19+ $42.94
29+ $42.43
39+ $41.92
49+ $41.41
74+ $40.90
99+ $38.34
199+ $37.83
249+ $37.32
499+ $36.81
999+ $35.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

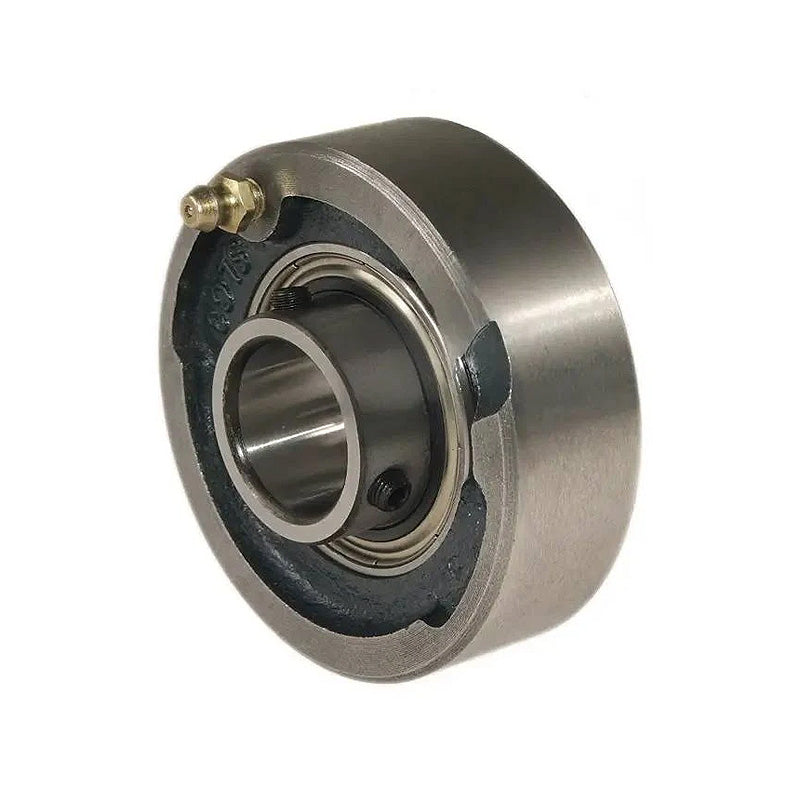

RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Outside Diameter:
79.4mm
Style:
SLC
Technical
Bore 25mm
L 79.4mm
A 26.19mm
A1 32.94mm
B 34.11mm
s 14.32mm
d1 34.01mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
